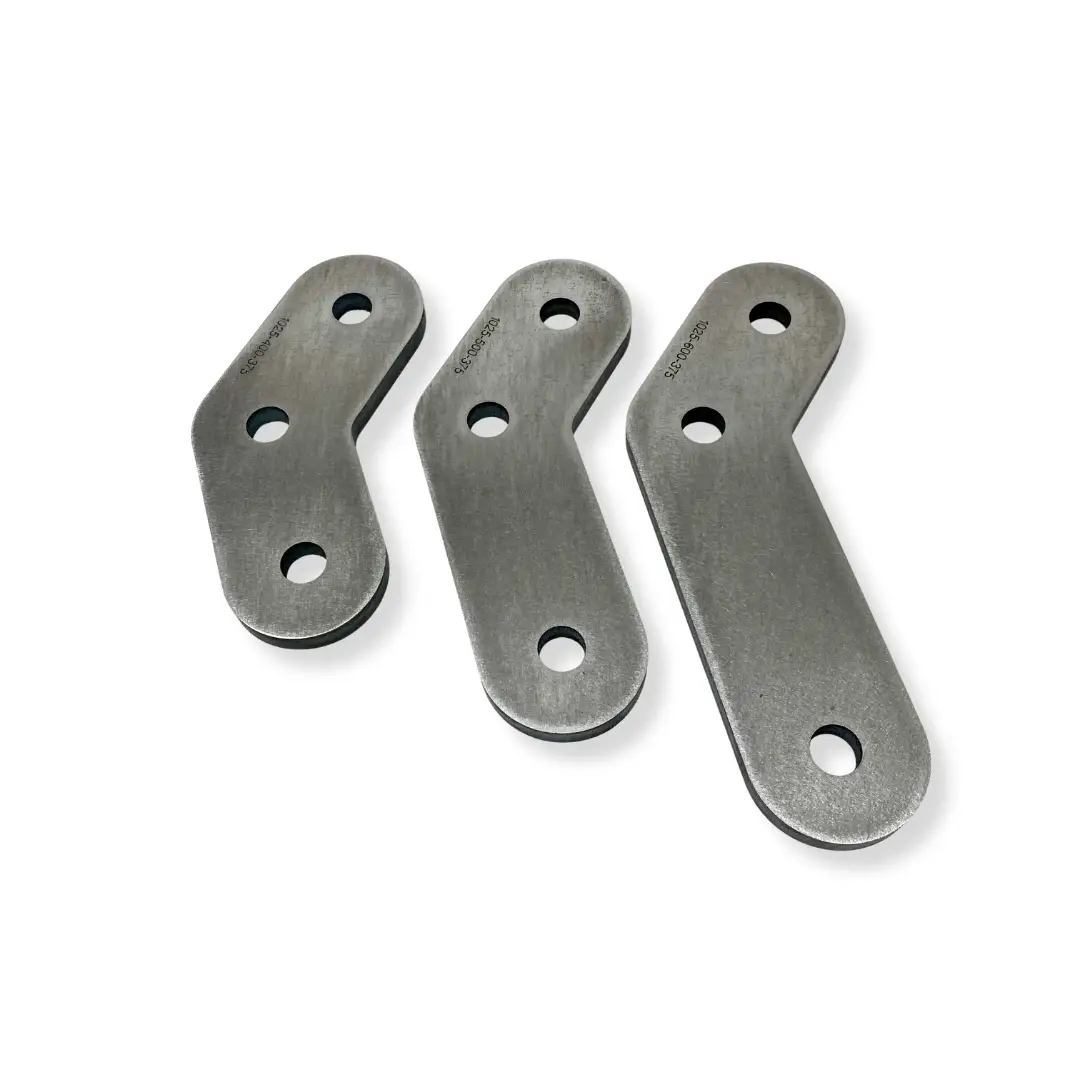

Boomerang Shackle

Description

The boomerang shackle solves one problem well: clearance. When a straight shackle hits the frame or crossmember, it limits your travel. This curved profile wraps around the obstacle and frees it back up.

When you need a boomerang shackle

Not every build needs one. So here’s the simple test: if your straight shackle contacts something at full stuff, the boomerang buys you room. Because the offset curve swings back and around, it clears obstacles a straight plate runs into. That usually means the rear crossmember, the frame itself, or aftermarket bumper and relocation brackets. When longer springs push a straight shackle into the frame mount, this shape keeps it off. It also keeps your shackle hanger and leaf pack from taking a hit at full compression.

Here’s the honest part. Since the holes match our straight shackle spacing, your suspension geometry stays the same. So you get the clearance, not a different ride.

Built from 3/8″ steel

We laser cut every plate in-house from 3/8″ steel. So you get a clean, consistent part that holds up to real trail abuse. The 9/16″ holes come ready to bolt in. Plus you can drill them larger if your build calls for it.

• 3/8″ laser-cut steel. Made in the USA, in our own shop.

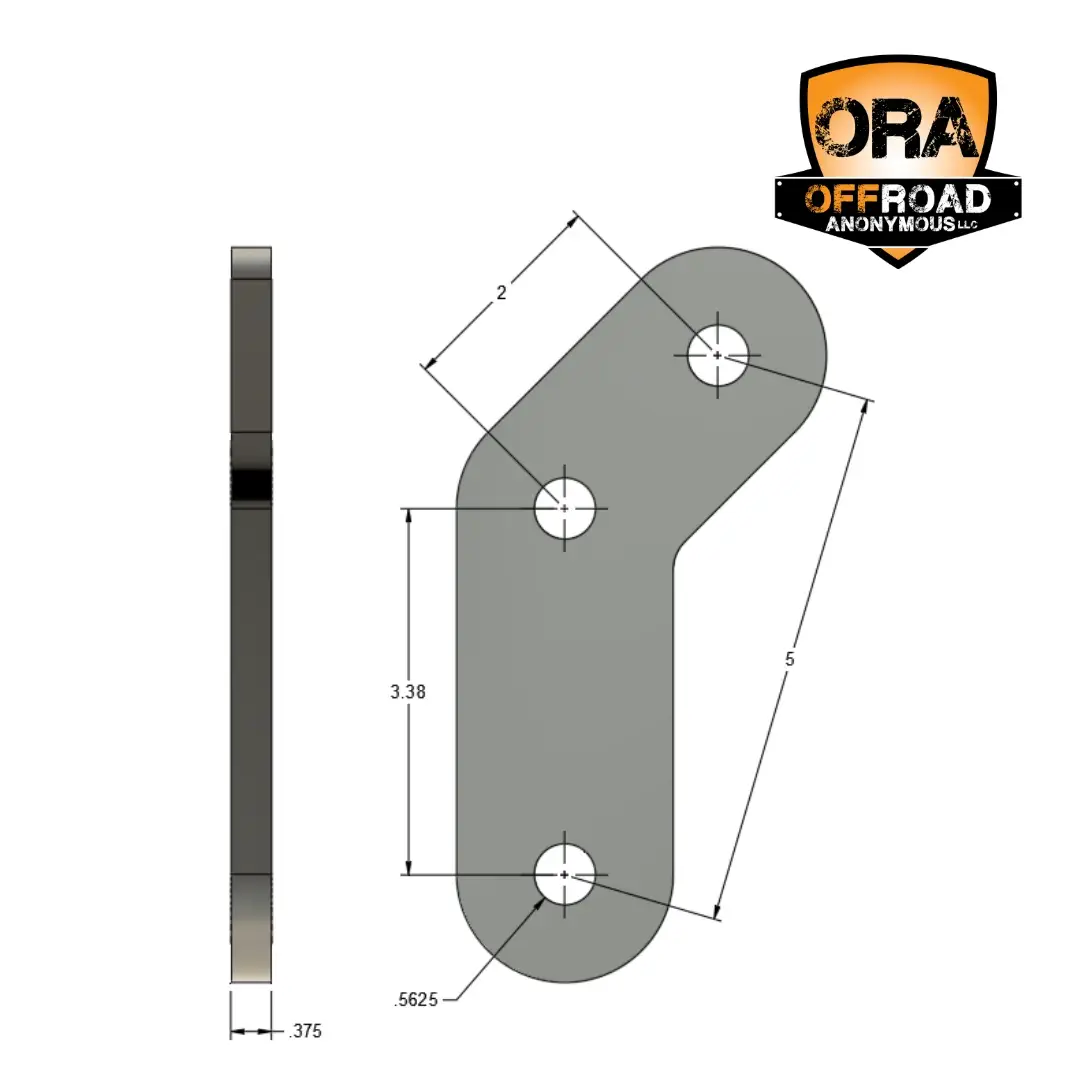

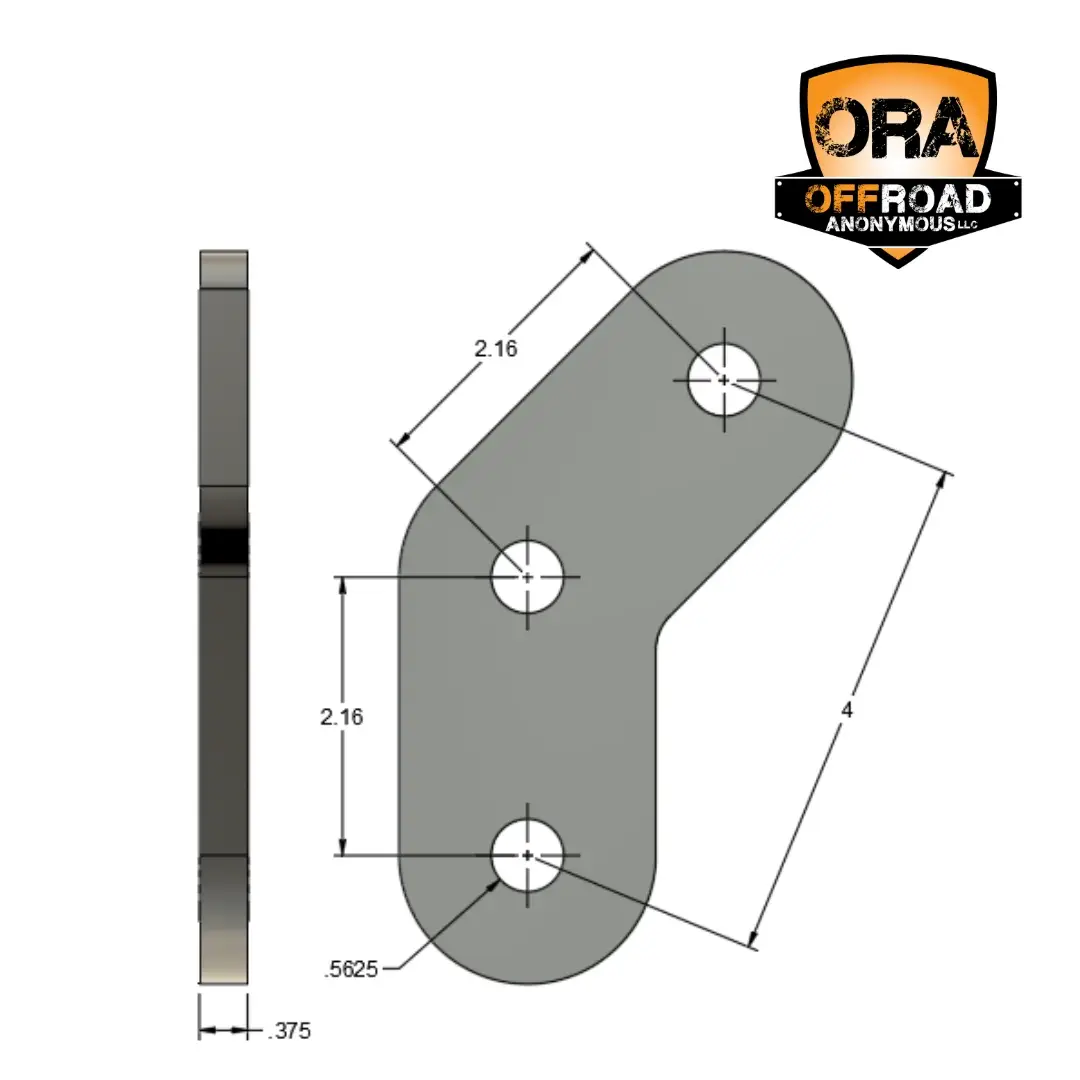

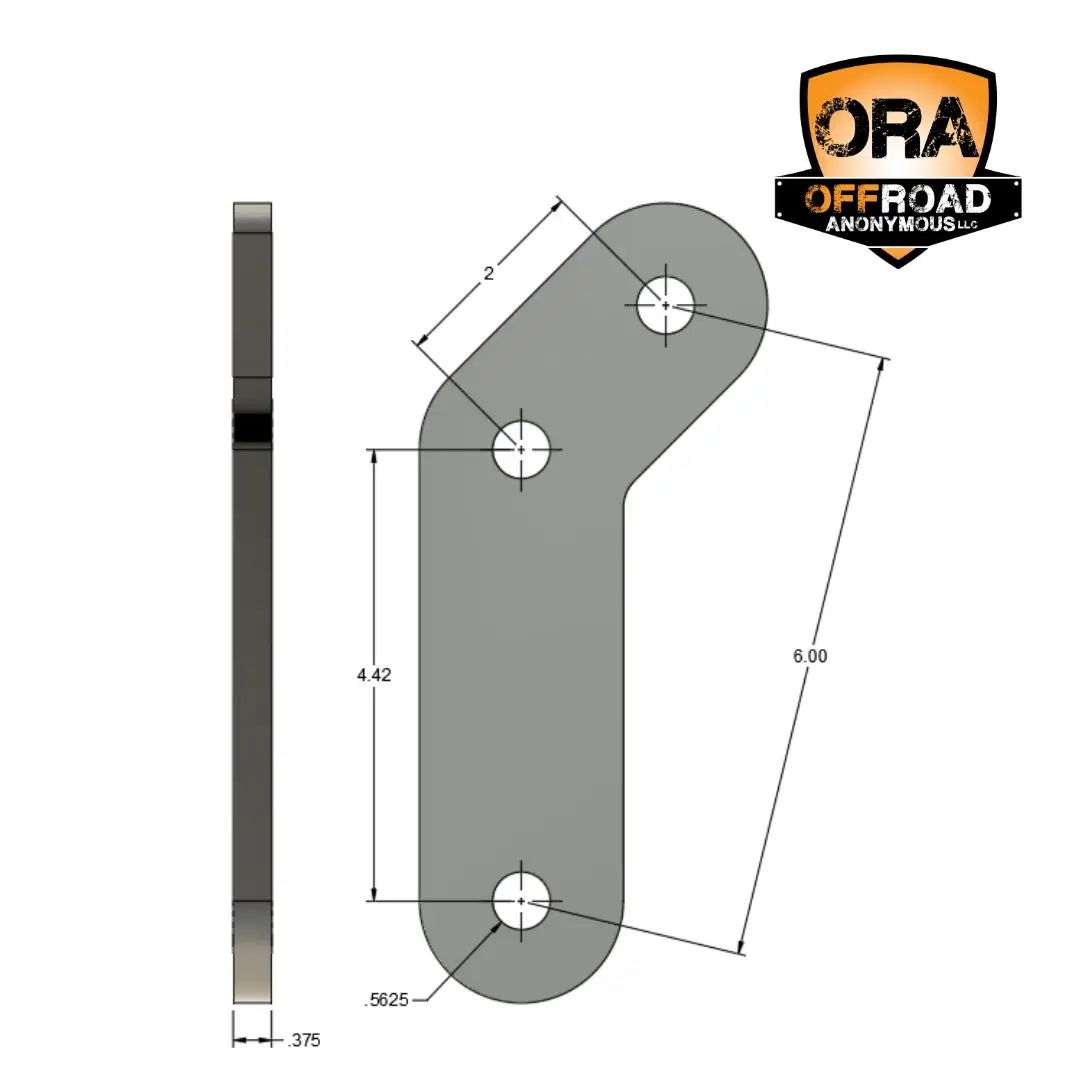

• Available in 4″, 5″, and 6″ eye to eye.
• 9/16″ holes, drilled larger if you need it.
• Installs either direction. About as universal as it gets.

Sold in pairs

Each order includes one pair of boomerang shackle plates, so that’s two plates total. A single leaf spring uses one pair. That means a full axle with two springs needs two orders. You get the shackle plates only. You’ll add your own bolts and bushings.

Running a straight setup instead? Check out our straight leaf spring shackle. And if you’re swapping axles, the U-bolt eliminator kit pairs up nicely.
