These Radius Arm Mount plates may be handy if you’re building a custom radius arm suspension or traction bars. Switching over to this style will help prevent dreaded axle wrap.

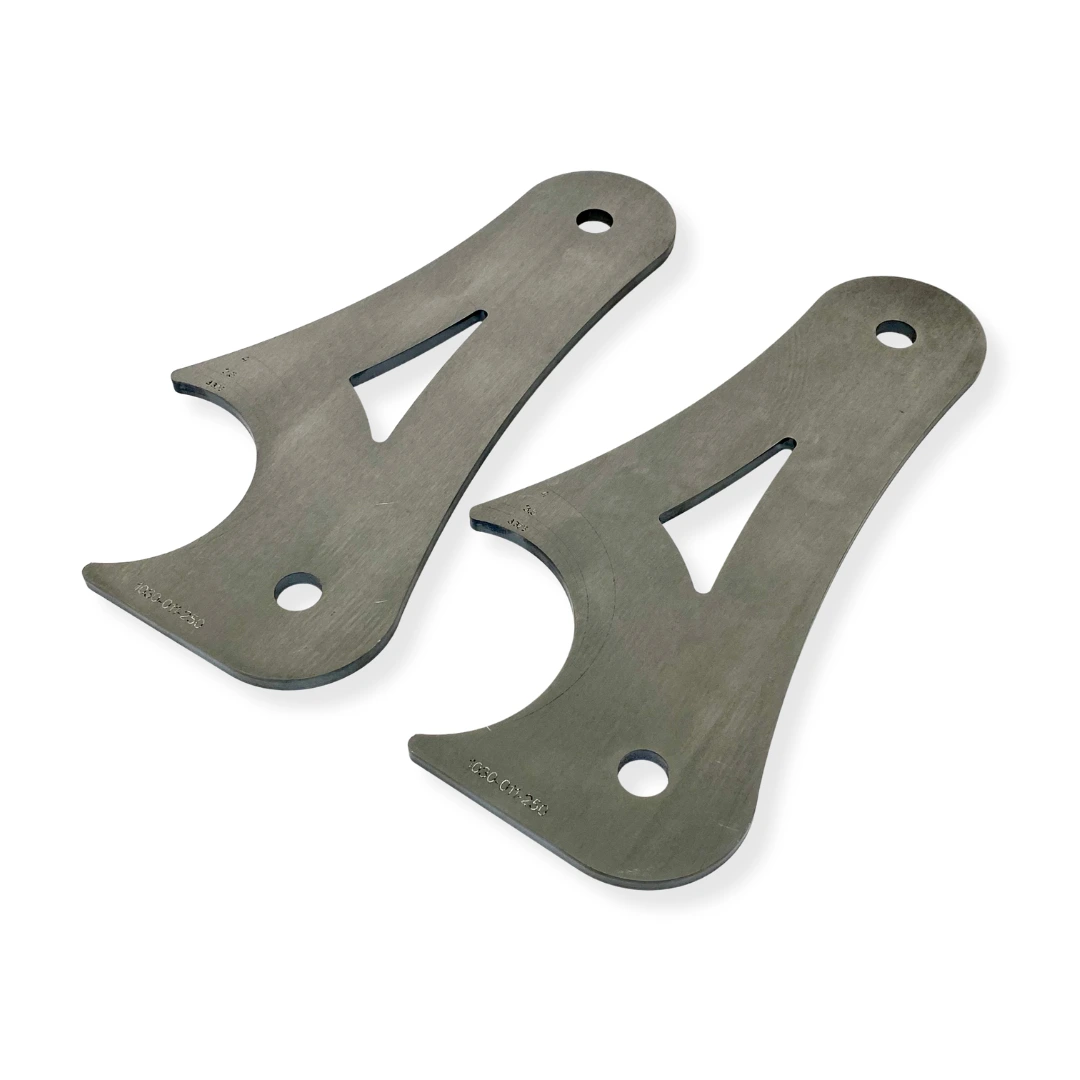

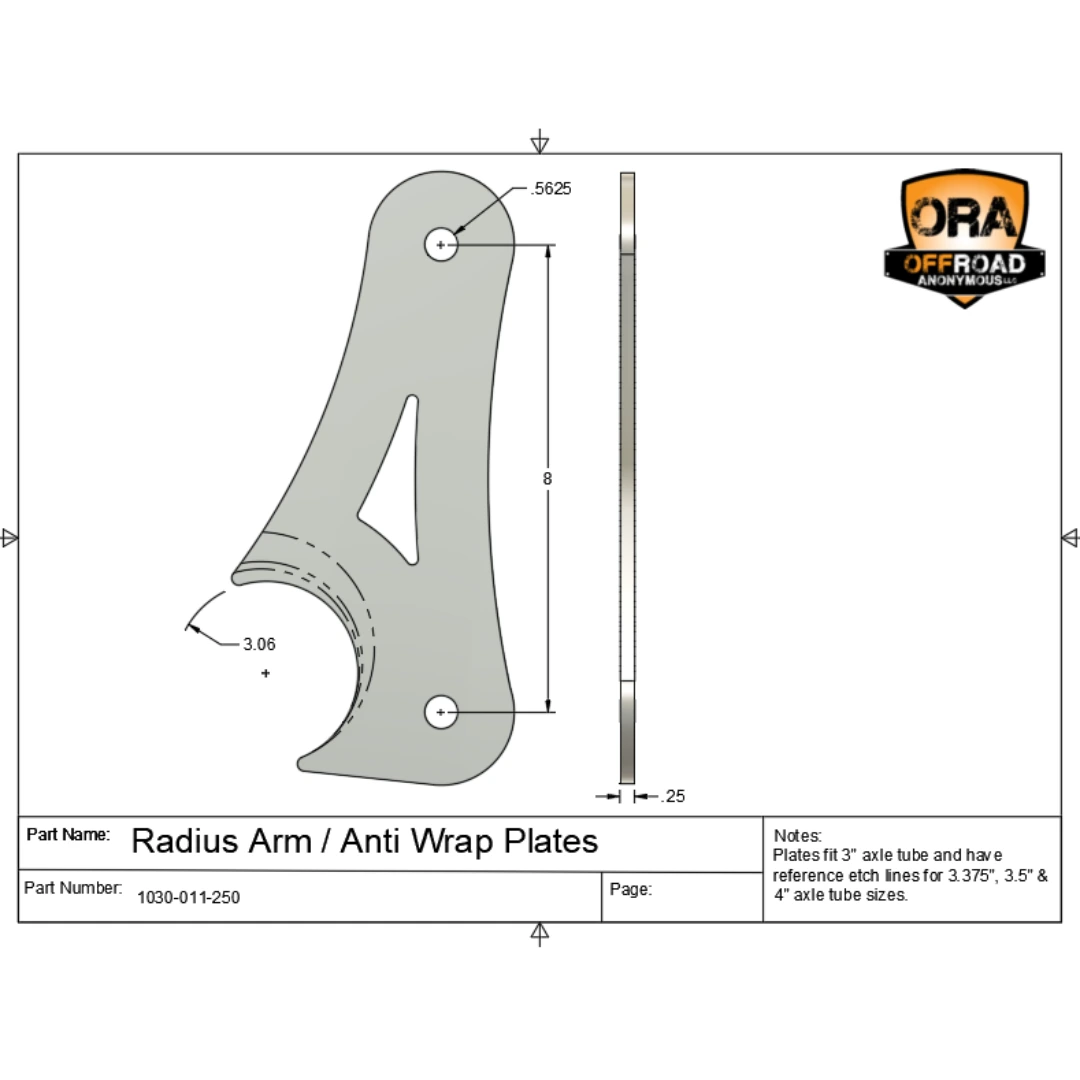

These stout brackets are cut from 1/4″ HRPO steel and left raw so you can weld them easily. The brackets are sold in pairs. Each hole is sized to accommodate 9/16″ bolts and can be easily drilled larger if needed.

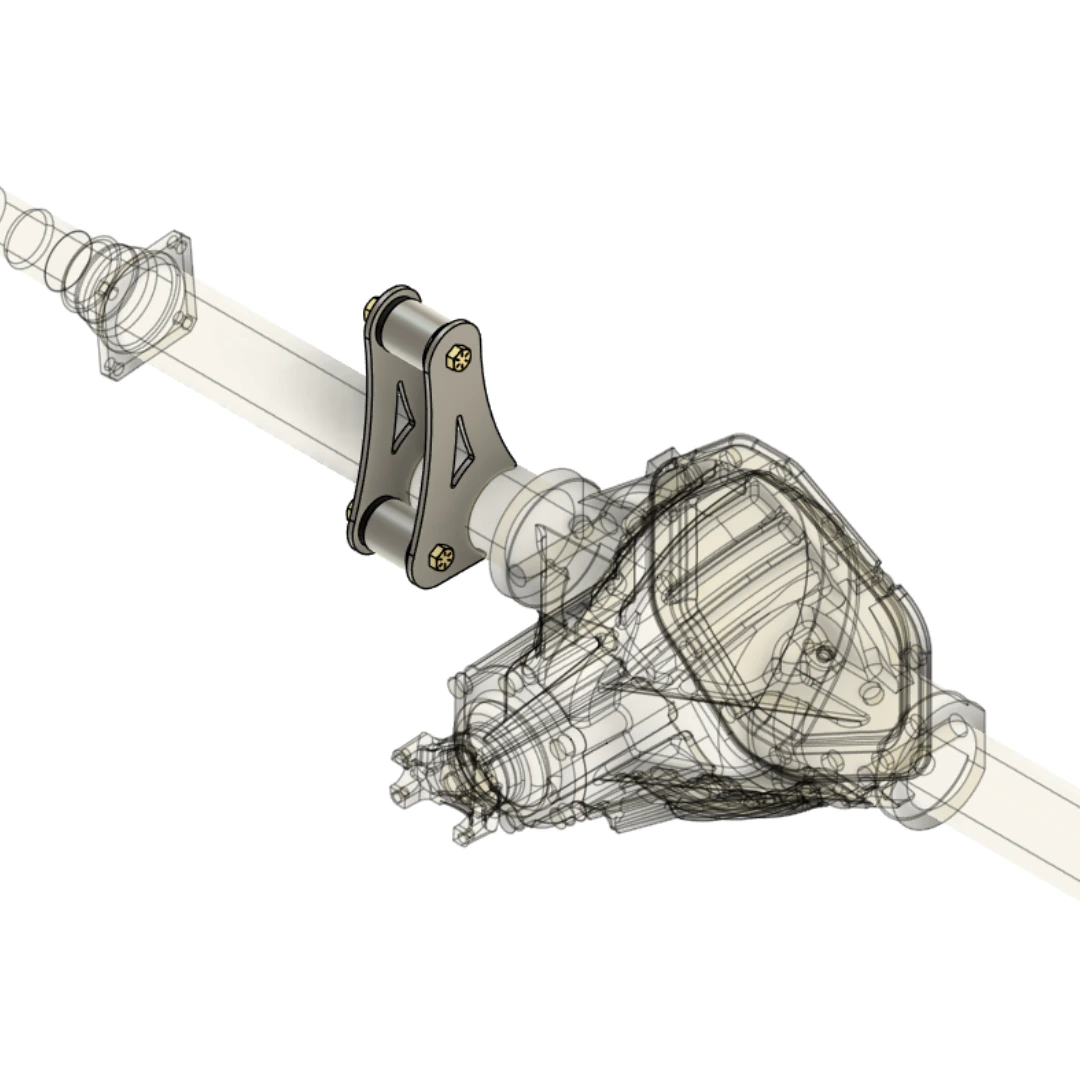

The plates are designed to be welded onto a 3.25″ axle tube. However, they can be easily modified to accommodate a larger or smaller axle tube. To make modifying them even easier they have laser scribed lines for 3.375″, 3.5″, and 4″ axle tube diameters.  Additionally, the plates allow for your choice of bushing or rod end to fit between the two plates. This allows you to be flexible on placement to meet your rig’s needs.

If you’re looking for some serious axle wrap prevention, we offer these plates in a full Axle Wrap Kit. Additionally, these plates can be paired with our mini shackles and bushing mounts if you are looking to put your own kit together.
