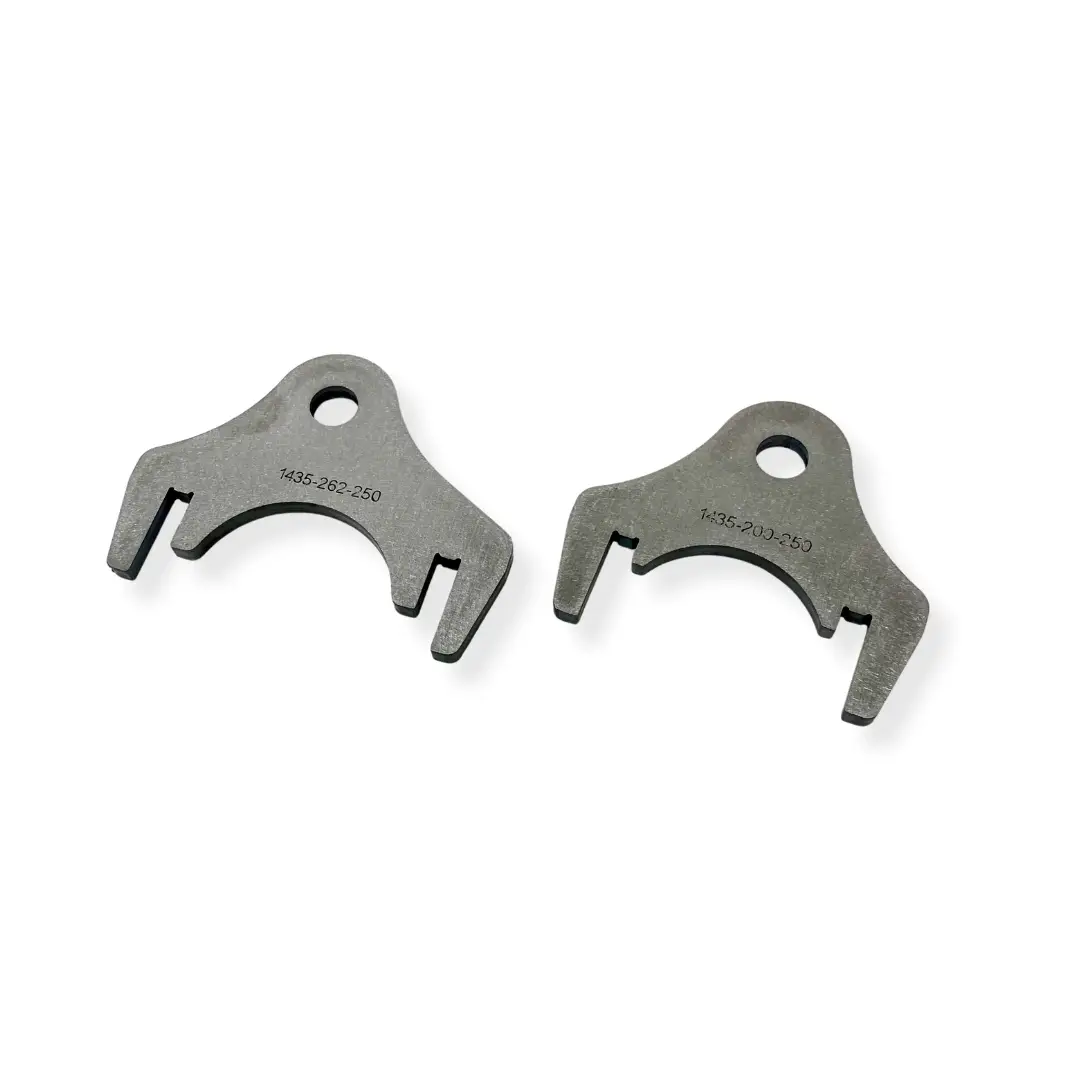

Laser-cut 1/4″ weld-on shock tab designed to straddle a link bracket, with a center cutout for rod end clearance. Available in 2″ and 2.625″ mounting widths — works for shock mounts, sway bar links, or limit strap tabs on a linked suspension build.
$5.50

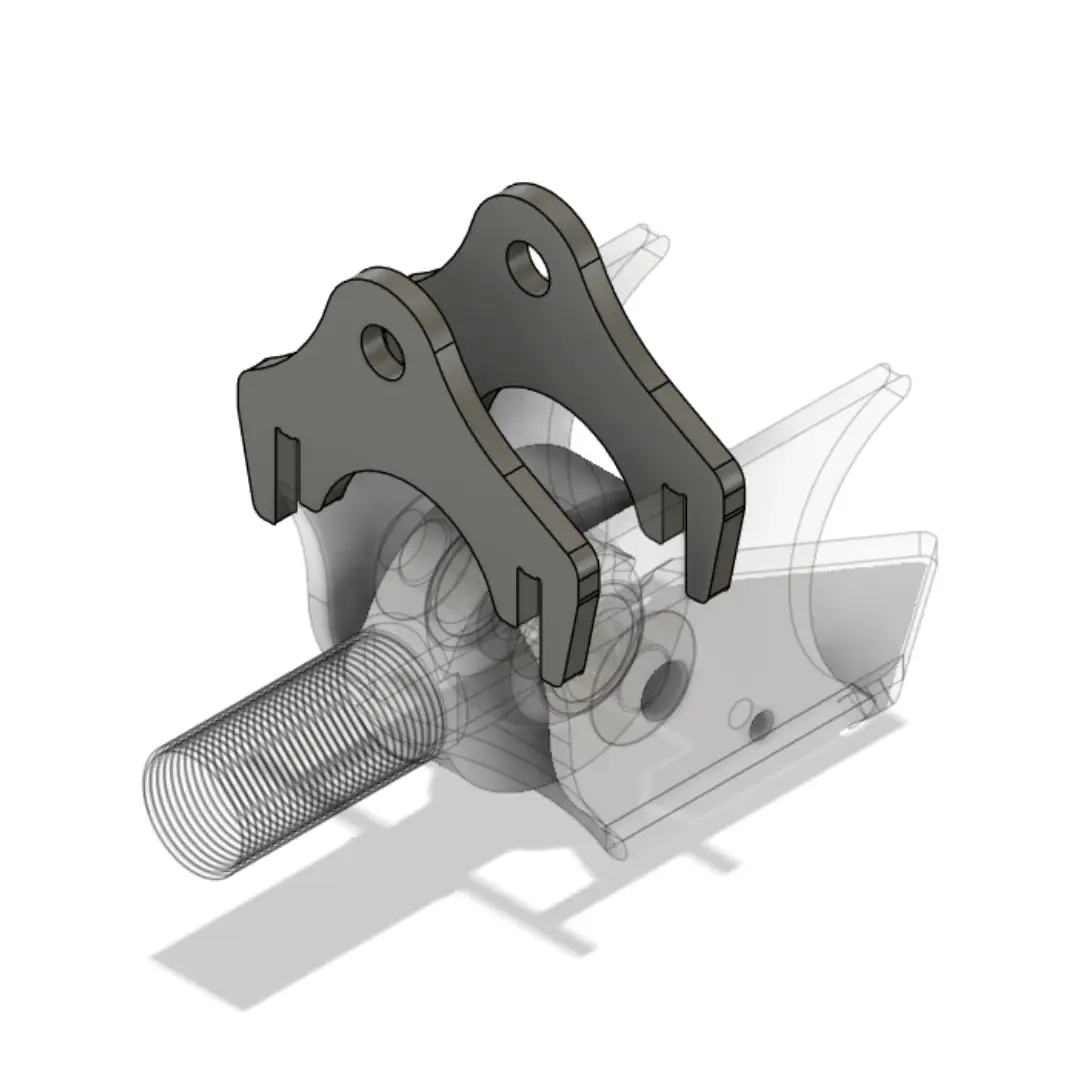

This link bracket shock tab is laser cut from 1/4″ steel and built to straddle a link bracket — the center cutout clears the rod end underneath, keeping the mount compact and the geometry clean. Available in two mounting widths to match your bracket or tab spacing.

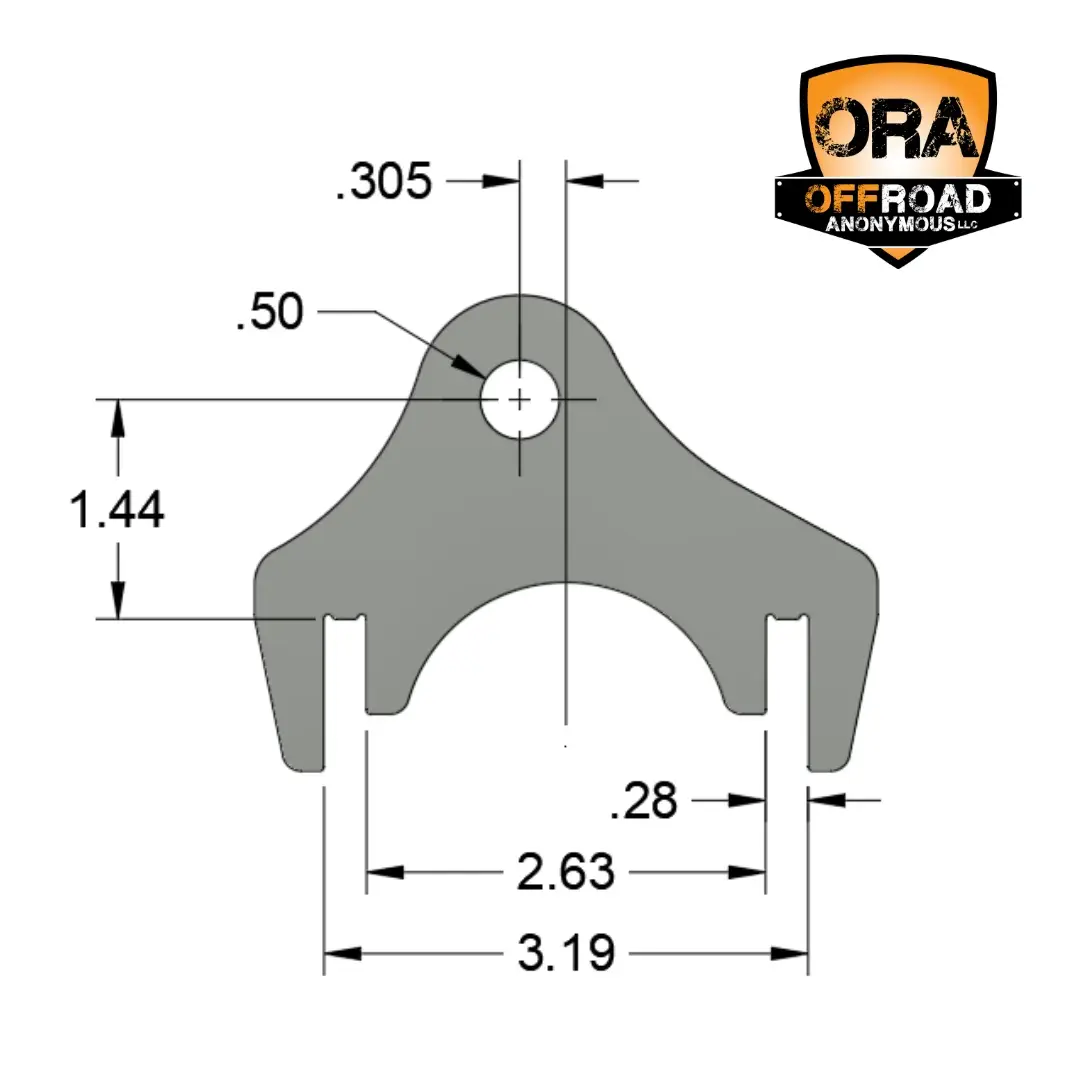

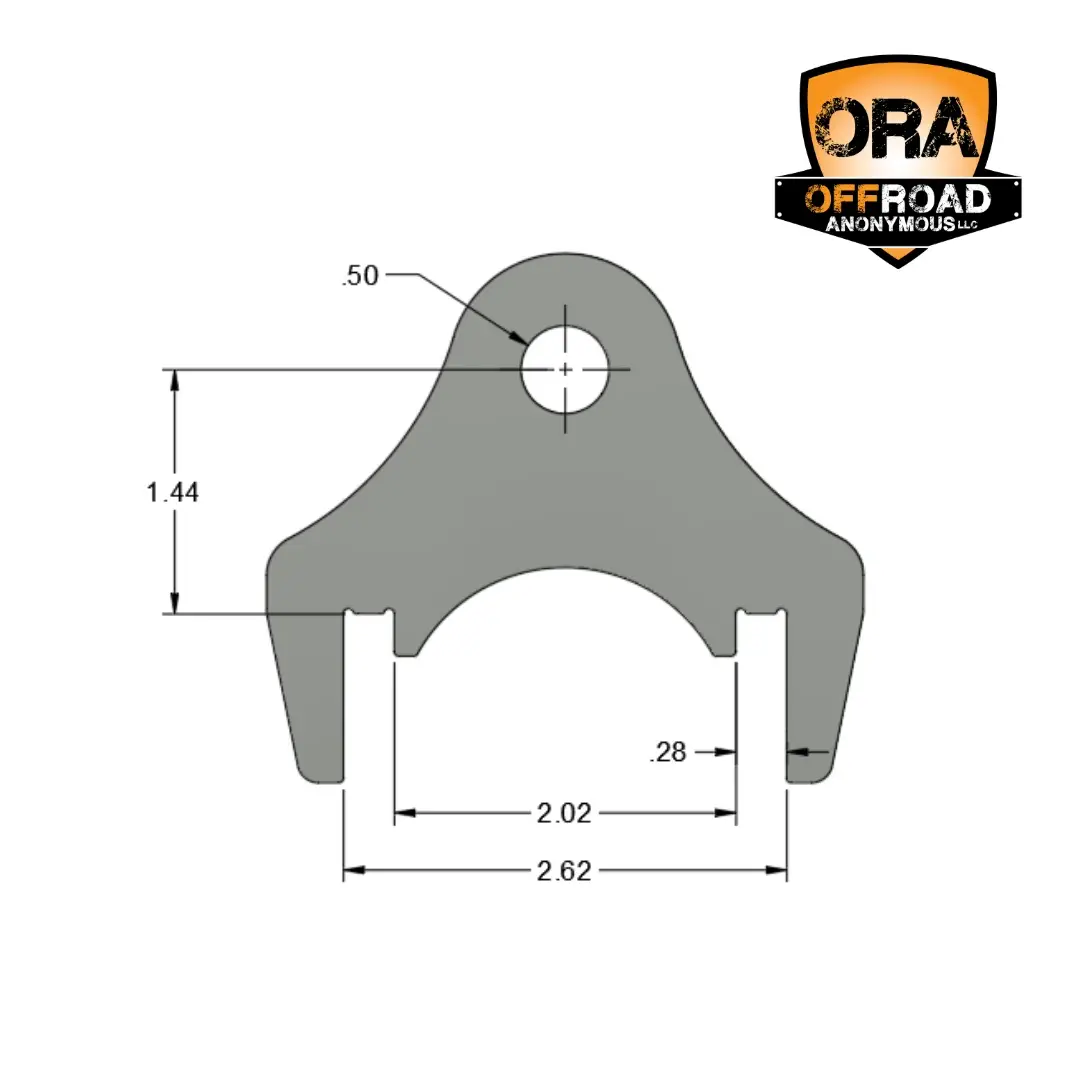

The 2″ version has a centered shock bolt hole. The 2.625″ version has an offset bolt hole — refer to the dimensioned drawing for exact placement.
The saddle base drops over your link bracket and the rod end clearance cutout does the rest. Works great for a shock mount, sway bar link point, or limit strap tab on a bracket — not just a flat surface. That’s what makes it different from a standard weld-on shock tab.
Looking for the full combo? Check out our Lower Link Bracket with Shock Mount.
*These tabs were designed around ORA’s combo link brackets. If you’re running a different bracket, measure your tab spacing and clearance before ordering to confirm fit.
| Weight | N/A |
|---|---|
| Mounting Width | 2.00", 2.625" |
