Weld-On Shock Bracket

Description

Weld-On Shock Bracket

Upgrade your suspension with our premium Weld-On Shock Bracket, proudly made in the USA. Built for durability and easy installation, each bracket is laser-cut and CNC-bent from 1/4″ steel for maximum precision. Because of the one-piece design, installation is faster and simpler compared to multi-tab shock tabs. In addition, the double-shear coilover mount provides maximum strength to handle the harshest off-road conditions.

With ORA Weld-On Shock Brackets, mounting standard shocks and coilovers is straightforward. These brackets act as a universal solution for suspension upgrades, axle swaps, or roll cage fabrication. Crafted from a single piece of steel, they provide excellent durability and a secure fit. As a result, your suspension components stay reliable even on the toughest trails. Whether you are completing an axle swap or fine-tuning your suspension setup, these shock mounts deliver the heavy-duty solution you can count on.

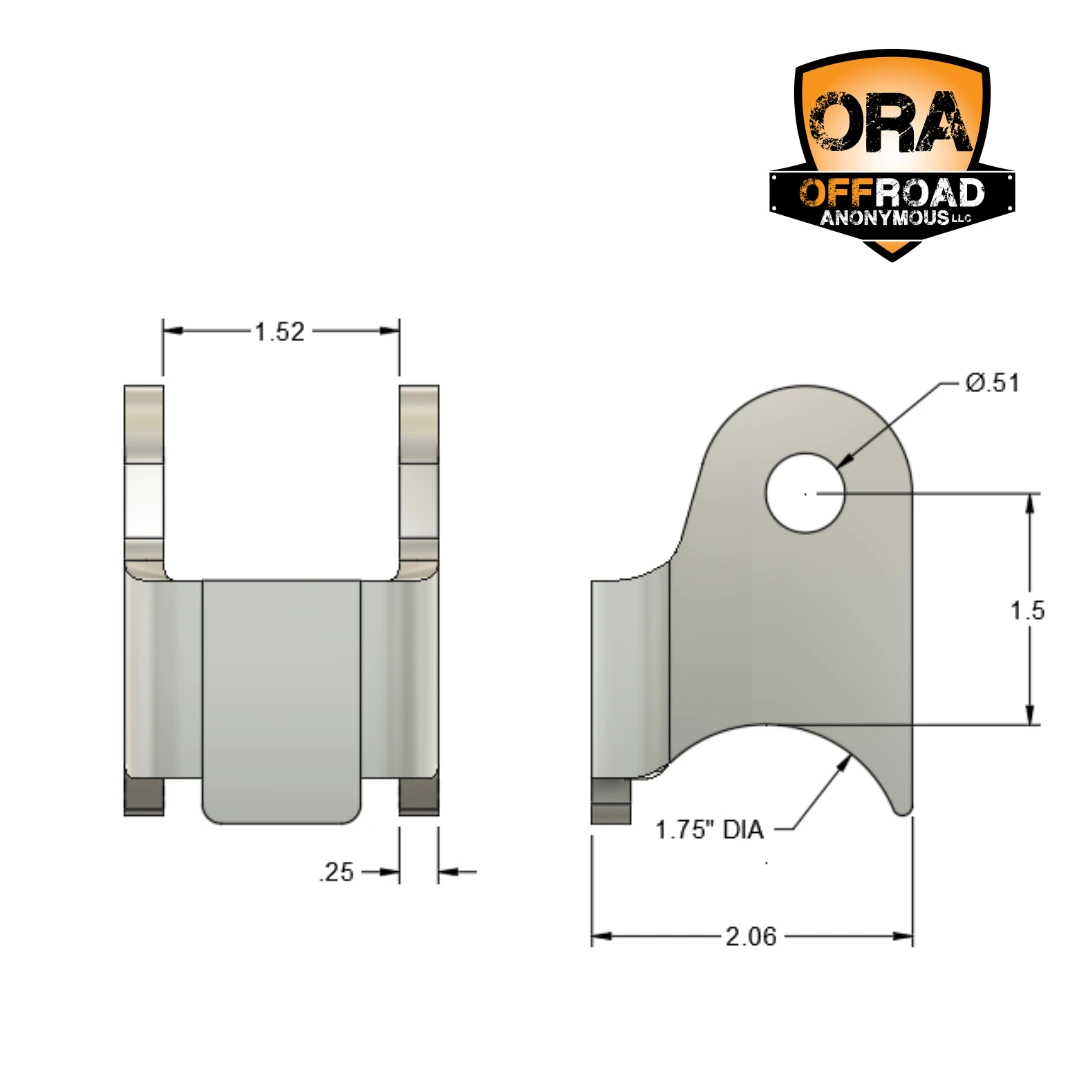

Measurements:

• 1/2″ shock mounting bolt hole
• 1-1/2″ base to hole center
• 1-1/2″ inside shock mounting width
• If necessary, the shock mounting hole can also be drilled out so that it fits larger bolts.

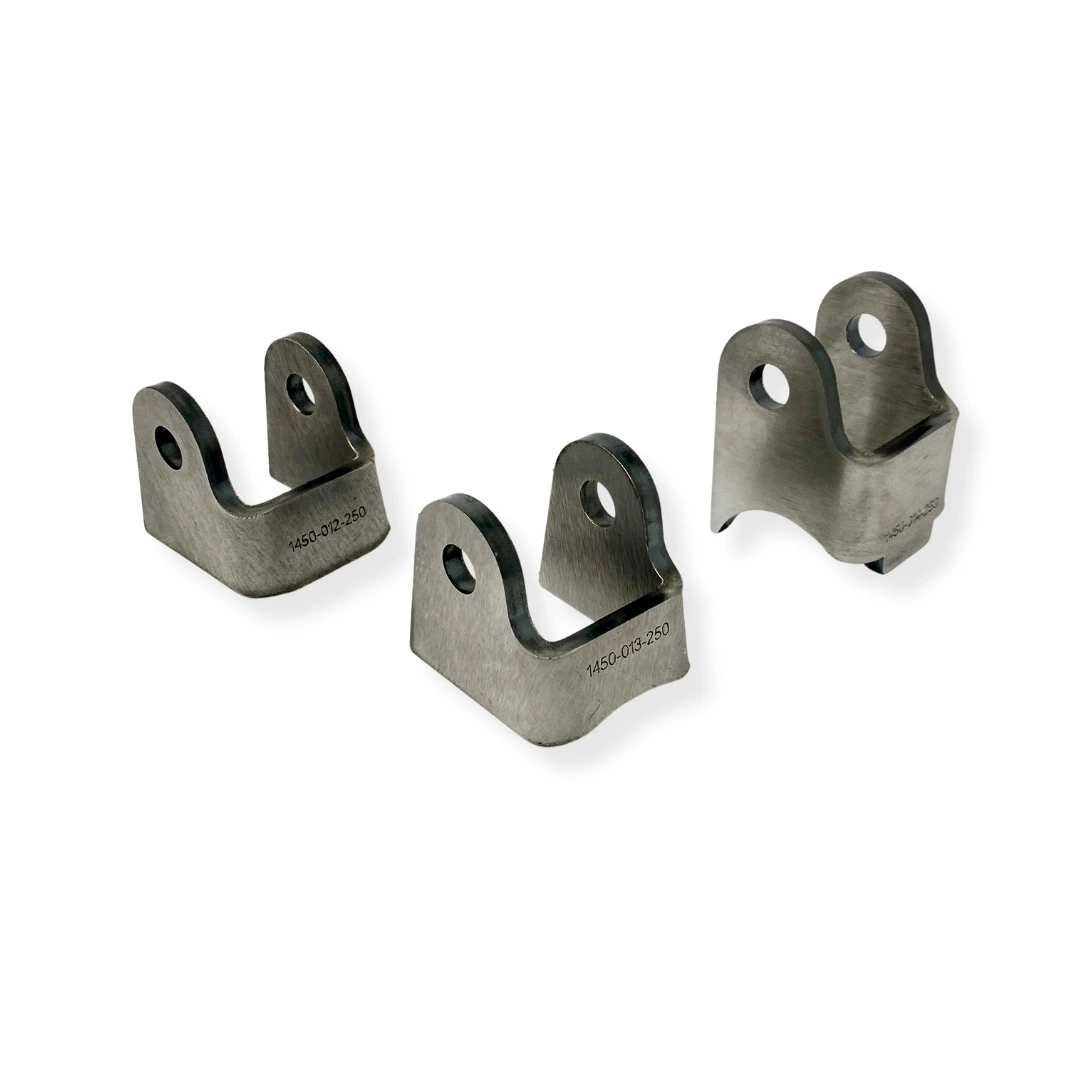

Choose from three variations: Sold Individually

Weld-On Flat Shock Mount:

• Perfect for adding a shock bracket to the top of your axle truss or under your chassis.

Weld-On Radiused Shock Mount (Perpendicular bolt Configuration):

• Radiused to fit most common axle tubes.
• When mounted with the shock bolt perpendicular to the axle tube, the design helps prevent binding during articulation.
• With minimum grinding, it can fit smaller tubing
• The bracket has an etched reference line for a grinding guide to fit a 1-3/4″ tube for mounting to roll cages or custom chassis.

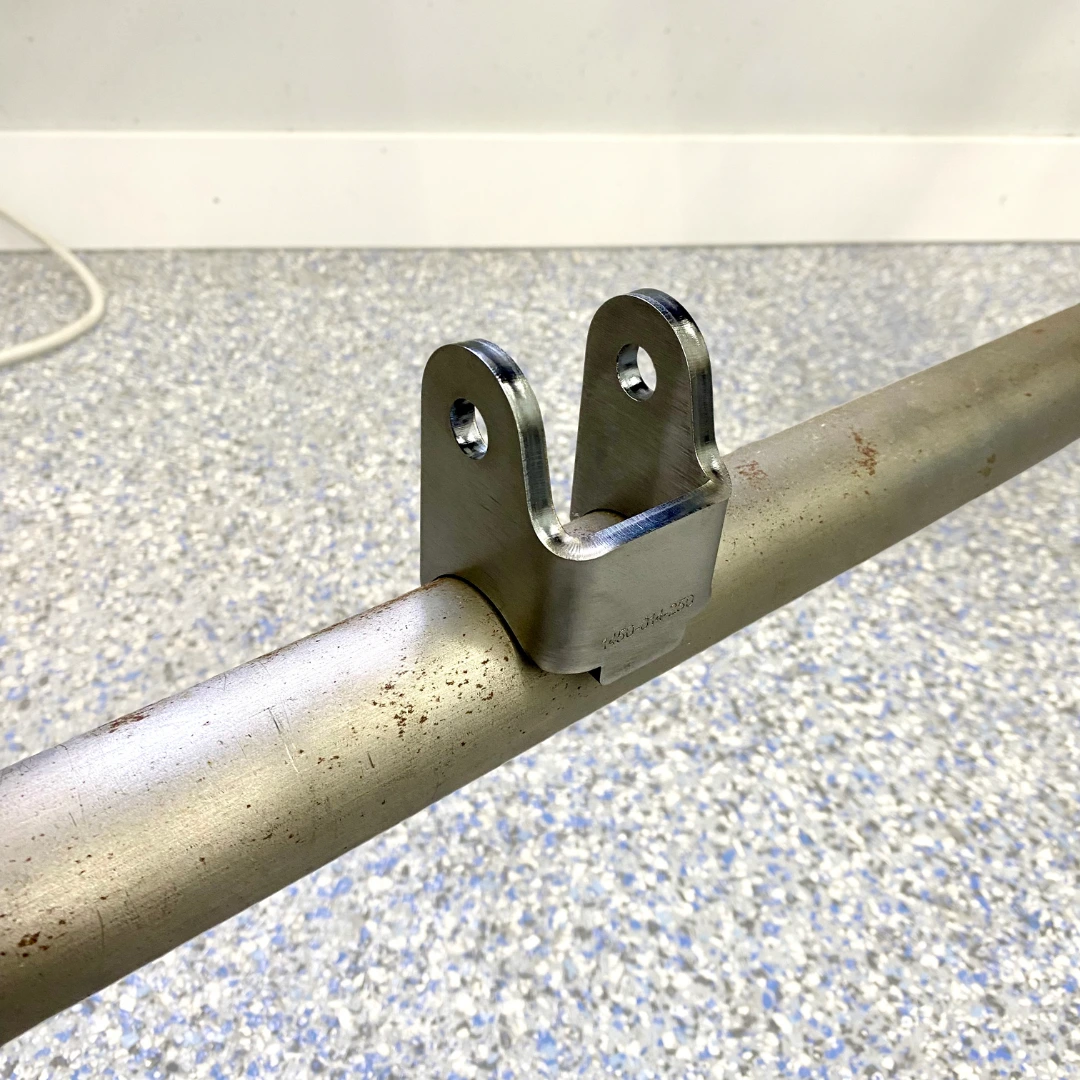

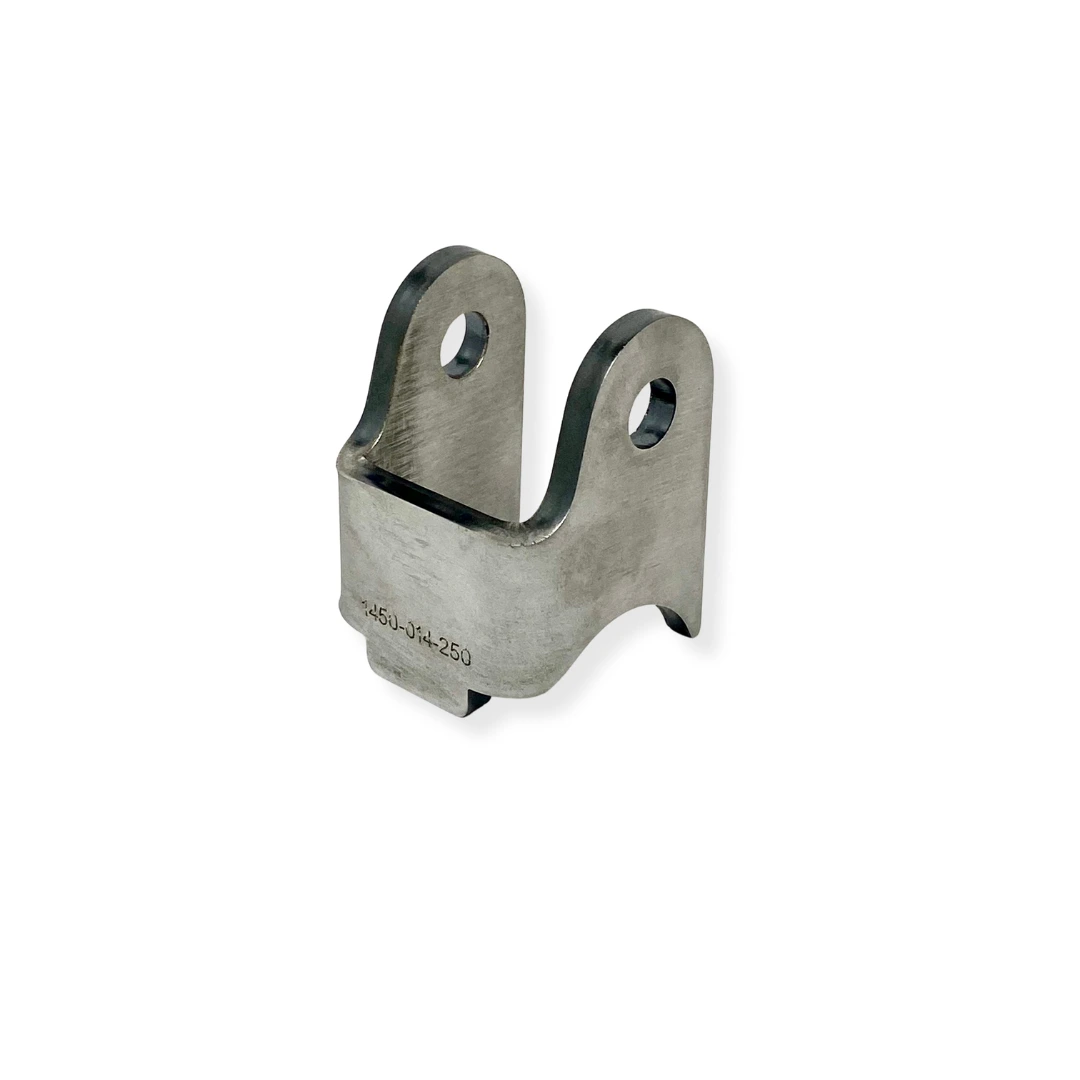

Weld-On Tube Shock Mount (Parallel Bolt Configuration):

• Designed to weld directly onto 1.75″ tubing (can be trimmed to fit larger or smaller tube sizes)
• Positions the shock bolt parallel to the tube.
• Great for mounting Mono-tube shocks to a tubular cross-member

Ultimately, whether you call them weld-on shock brackets, coilover mounts, or universal shock tabs, these brackets are built to handle tough trails while keeping your rig performing at its best.

For additional mounting flexibility, check out our Offset Axle Shock Mount. If you need a combined solution, our Lower Link Bracket with Integrated Shock Mount is another great choice.
