Weld-on combination 4 link bracket for rear triangulated 4-link builds, sold as a PAIR – Left and Right. Lower mount is set at 10° out, upper at 15° in — both at 2.625″ mounting width for 1.25″ rod ends. Three upper hole positions let you dial in vertical separation at 3″, 4″, or 5″.
$120.00

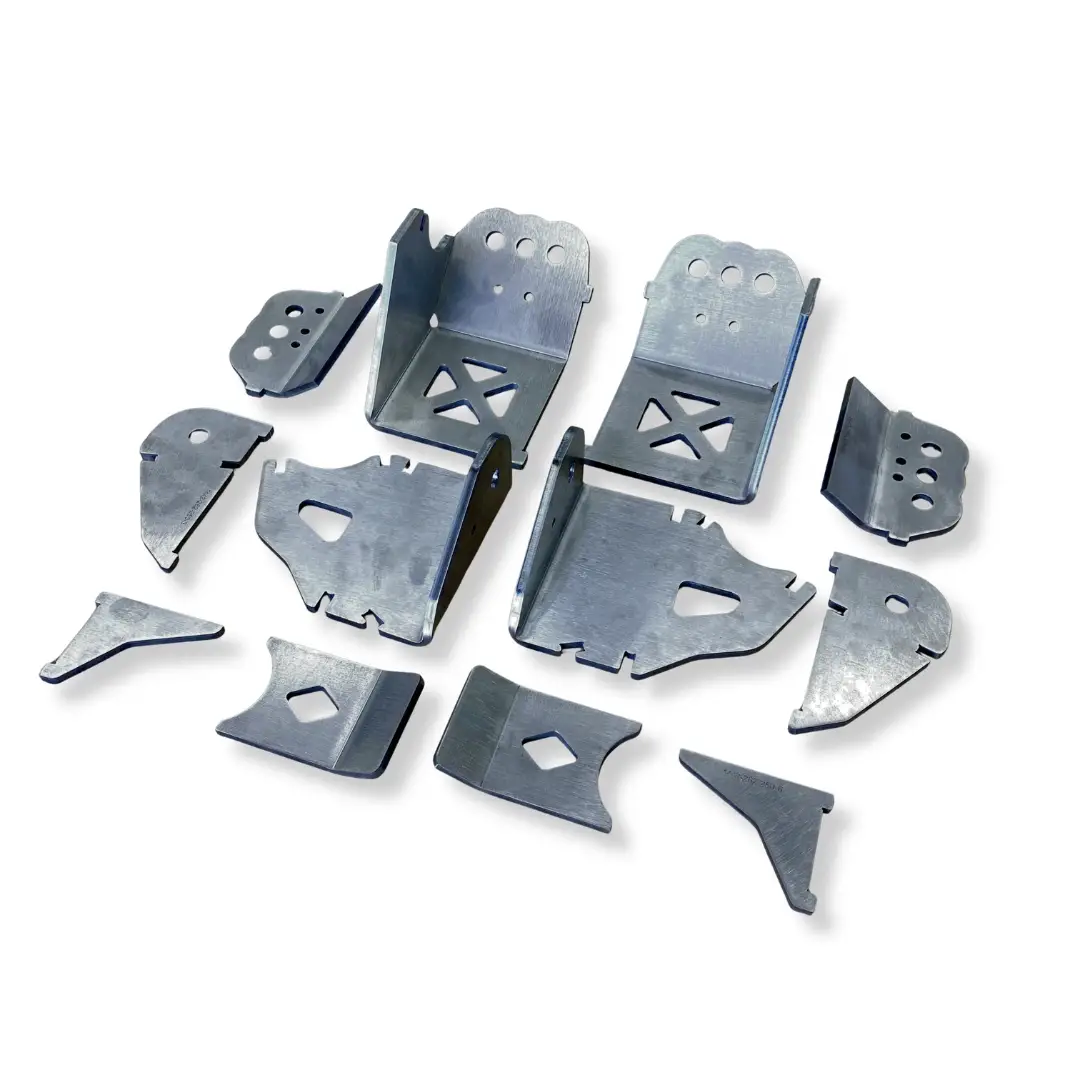

These combination 4 link frame brackets combine your upper and lower frame-side link mounts into one bracket per side — sold as a left and right pair, so you have both sides covered. ORA laser cuts and CNC forms each bracket from 1/4″ steel.

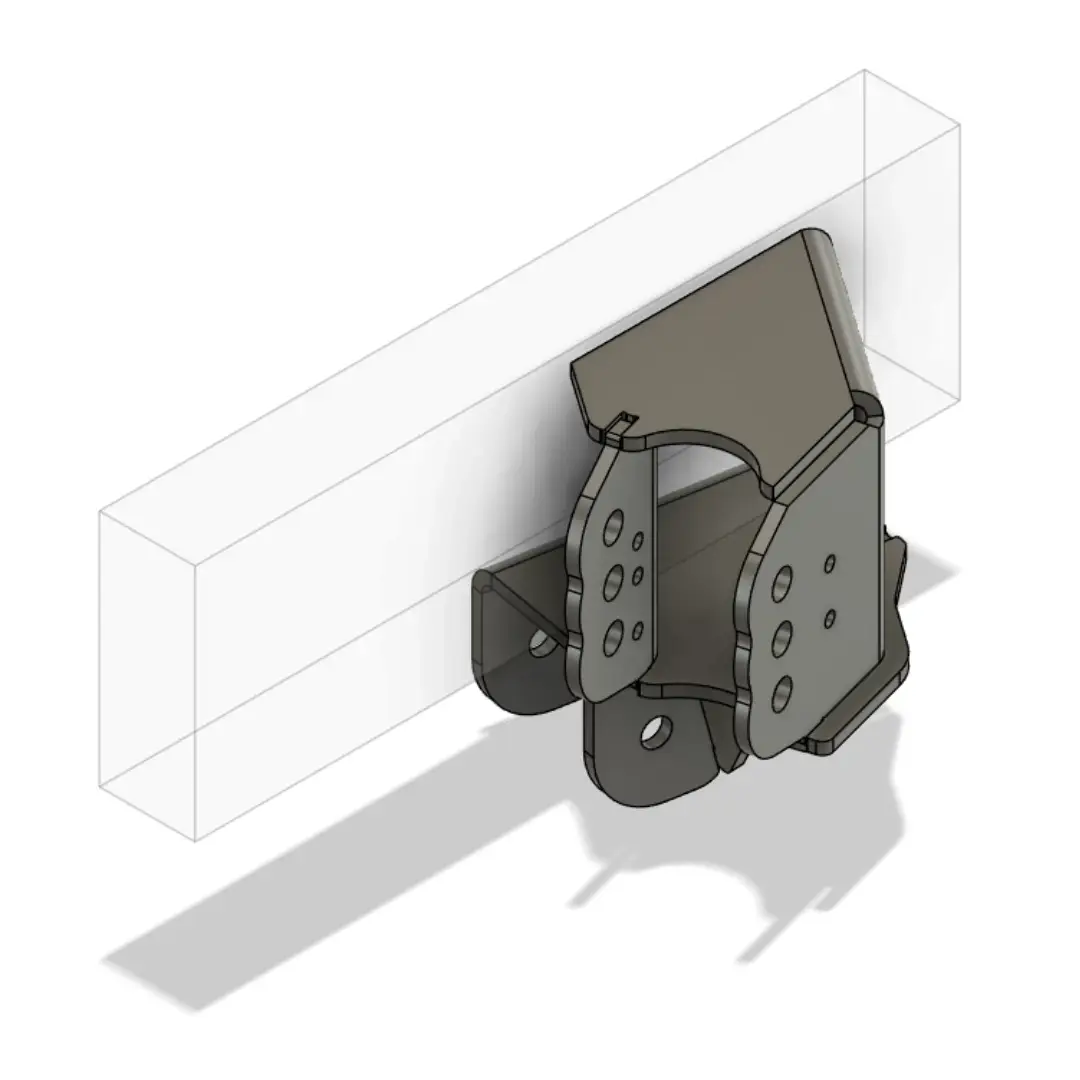

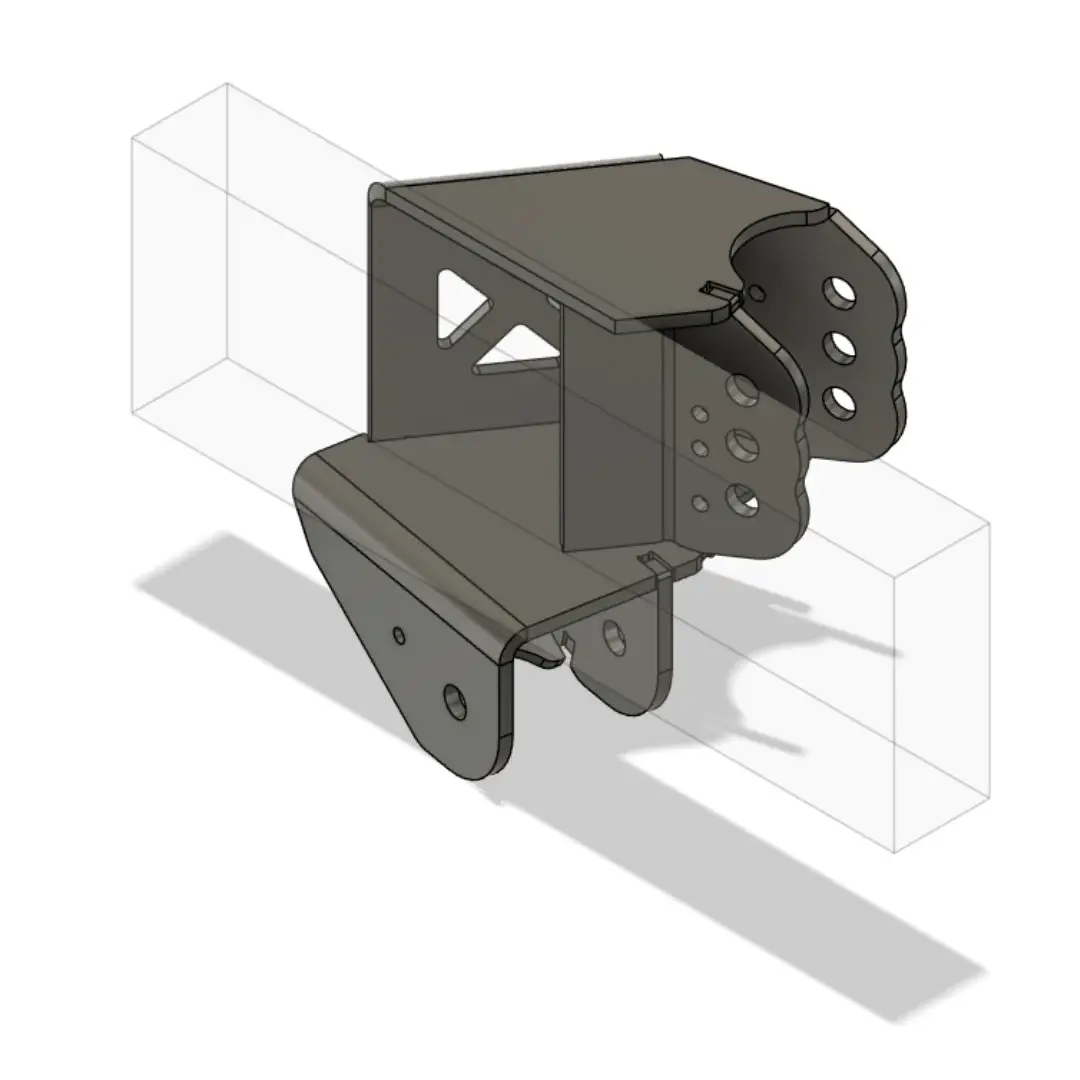

On a rear triangulated 4-link, the frame side needs both an upper and a lower link mount per side. That’s typically two separate brackets to source, position, and weld. The ORA Combination 4 Link Frame Bracket merges those two mounts into one bracket per side. So your upper and lower link geometry is fixed in relation to each other from the start — less measuring, less room for error, and making for an easier install overall.

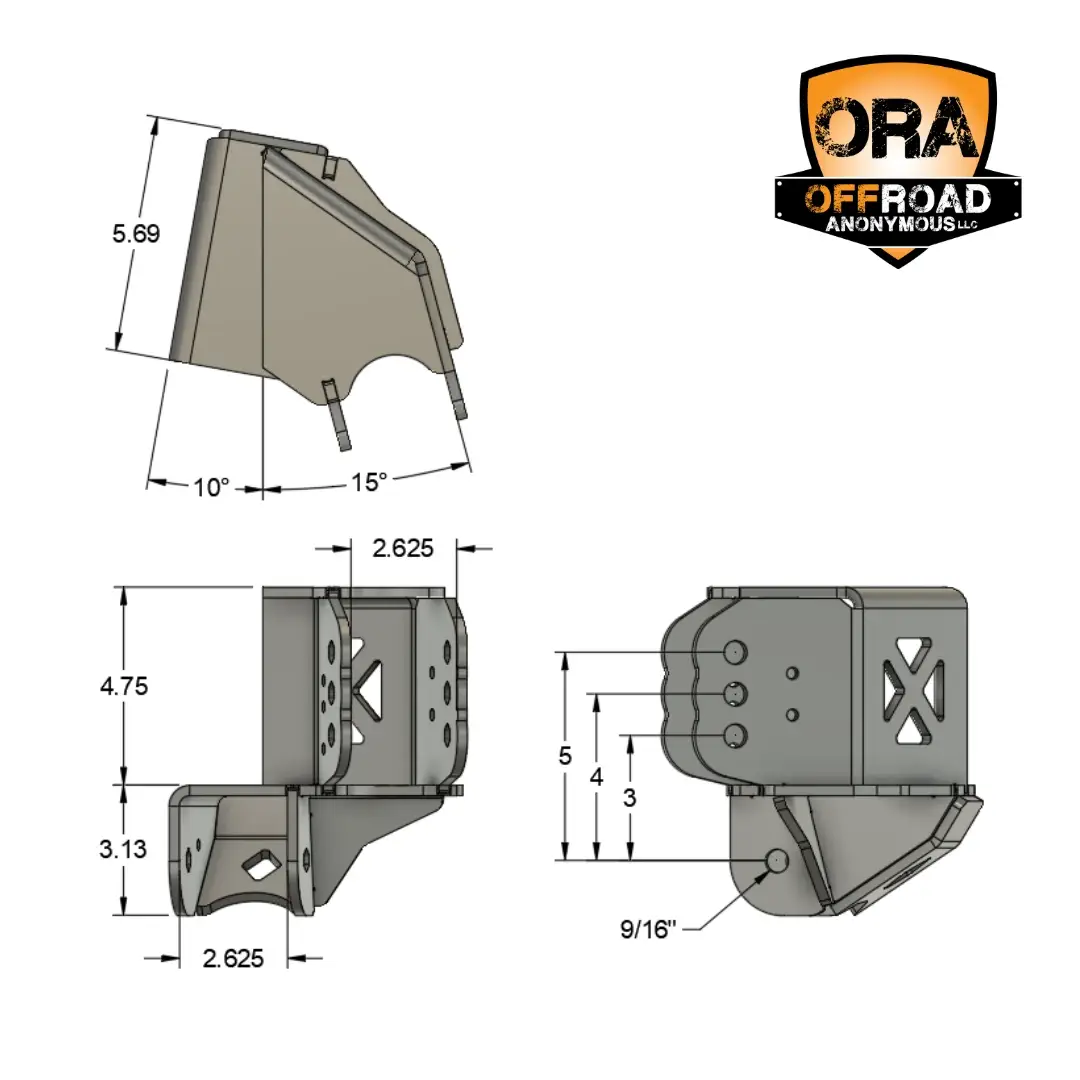

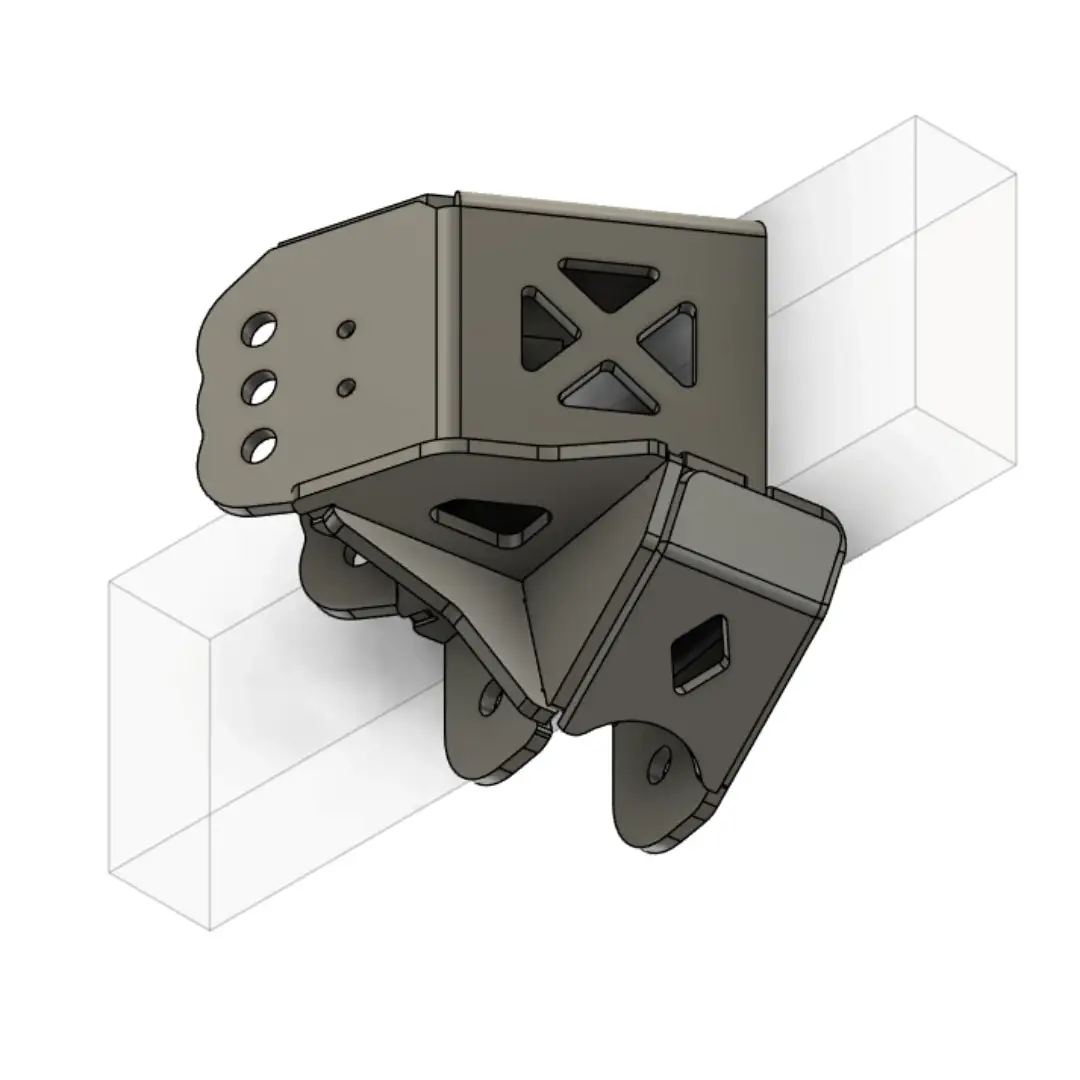

The lower mount is angled 10° outward. The upper is angled 15° inward. That combination reflects what we’ve found to be the most effective angle pairing for triangulated rear 4-link builds. Both mounts run a 2.625″ mounting width for 1.25″ rod ends, with 9/16″ bolt holes you can drill out for larger fasteners.
The upper mount has three bolt hole positions. That gives you a choice of 3″, 4″, or 5″ of vertical separation between your upper and lower link mounts. When you’re dialing in anti-squat or working around a specific frame height, that 2″ of range makes a real difference without cutting and re-welding.
The lower bracket carries a sloped leading edge — the same design used on our Angled Link Bracket. That slope sheds obstacles on the trail instead of catching them. It’s a small detail that matters when you’re crawling through rocky terrain and your lower brackets are hanging out in harm’s way.
These brackets also work with our Capture / Weld Washers if you want to add extra strength around the bolt hole.
For a complete frame-side and axle-side setup, these pair well with our 10° Lower Axle Link Brackets and Truss Mount Upper Link Bracket. Or, if you’re looking for everything in one package, check out our Universal Triangulated 4-Link Bracket Kit.
| Weight | 17.75 lbs |
|---|
