Lower Link Bracket

Options for mounting Width & Degree

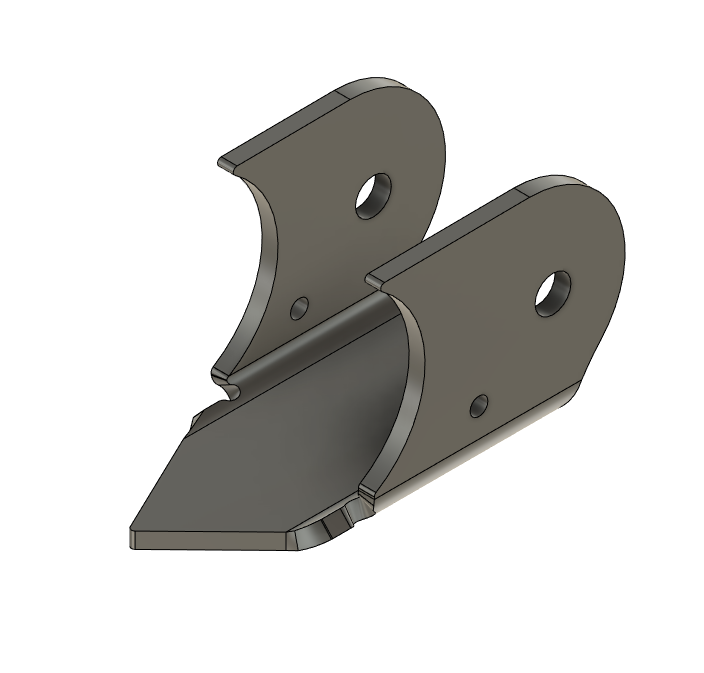

Lower Link Bracket

Linked suspension can be tricky to set up. But with a Lower Link Bracket, you can set up your suspension easily. These brackets are great for doing a three-link or four-link.

The brackets weld directly onto the axle tube. Cut from 1/4″ HRPO steel and bent on a CNC brake to add shape and strength. These brackets are designed to withstand difficult terrain and use. The solid base provides protection to the rod end. The curved snug fit with some welds will aid in making the bracket look factory. The open-top design allows you to still modify or replace rod ends in the future if ever needed.

The base comes flat, but once the sides are welded to the axle, bend the tab around your axle and finish welding. Doing so will provide a skid plate to protect your linkage further. Engineered to fit 3.25″ axle tubing, but can be modified to work with smaller or larger tubes with some fabricating.

Choose between a 2″ mounting width or a 2.625″ width. Additionally, you can choose between 0°, 10° and 20°. As a result, you can mount your suspension joints in a neutral position. Allowing you to maximize your travel.

While working on your linked suspension, you may want to incorporate a shock mount into the build. The Lower Link Bracket with Shock Mount makes tackling that desire a breeze. Together with our selection of rod ends and fabrication link tabs a linked suspension should come together easily.

Sold as a Pair

Additional information

Weight N/A
Dimensions N/A
Mounting Width

2" width 9/16" Hole, 2.625" width 9/16" hole


0, 10, 20
