Compact Vertical Link Bracket

Made in the USA from 1/4″ steel, the Compact Vertical Link Bracket delivers exceptional strength and durability in a compact design. The compact design optimizes space around critical components like your transmission, transfer case, and exhaust.

$35.00

Description

Compact Vertical Link Bracket

Made in the USA from 1/4″ steel, the Compact Vertical Link Bracket delivers exceptional strength and durability in a compact design. This bracket comes bare metal for easy welding. The compact design optimizes space around critical components like your transmission, transfer case, and exhaust.

A vertical link mounting bolt is easier to install and remove when needed. In addition, the bracket includes a fishplate that provides more welding surface while staying tight and compact. The bracket and fishplate are precision-cut with a key and slot for easy alignment. Designed to have a 10° downward angle, this aligns the heim joint to a neutral position at ride height, maximizing misalignment travel.

Features:
  • Heavy-Duty Build: Constructed from durable 1/4″ steel for long-lasting strength
  • Complete Kit: Includes fishplate and bracket for reinforced mounting
  • Versatile Mounting: Can be installed on the driver or passenger side
  • Link Mounting Hole: 9/16″ hole, easily drilled out up to 3/4″
  • Compatibility: Fully compatible with our capture and teardrop washers
Variations:

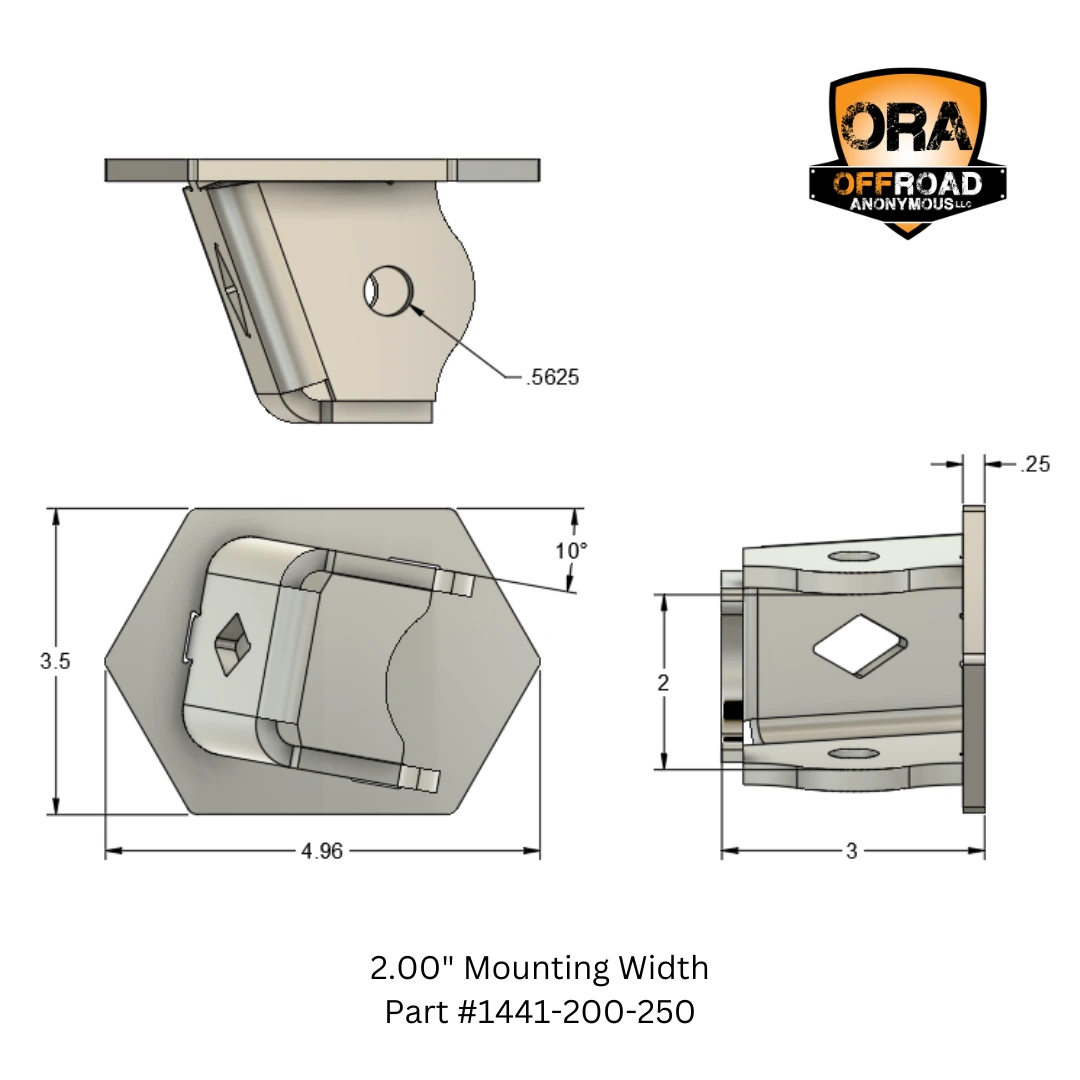

  • 2″ Inside Mounting Width: Fits 3/4″ and 7/8″ rod ends

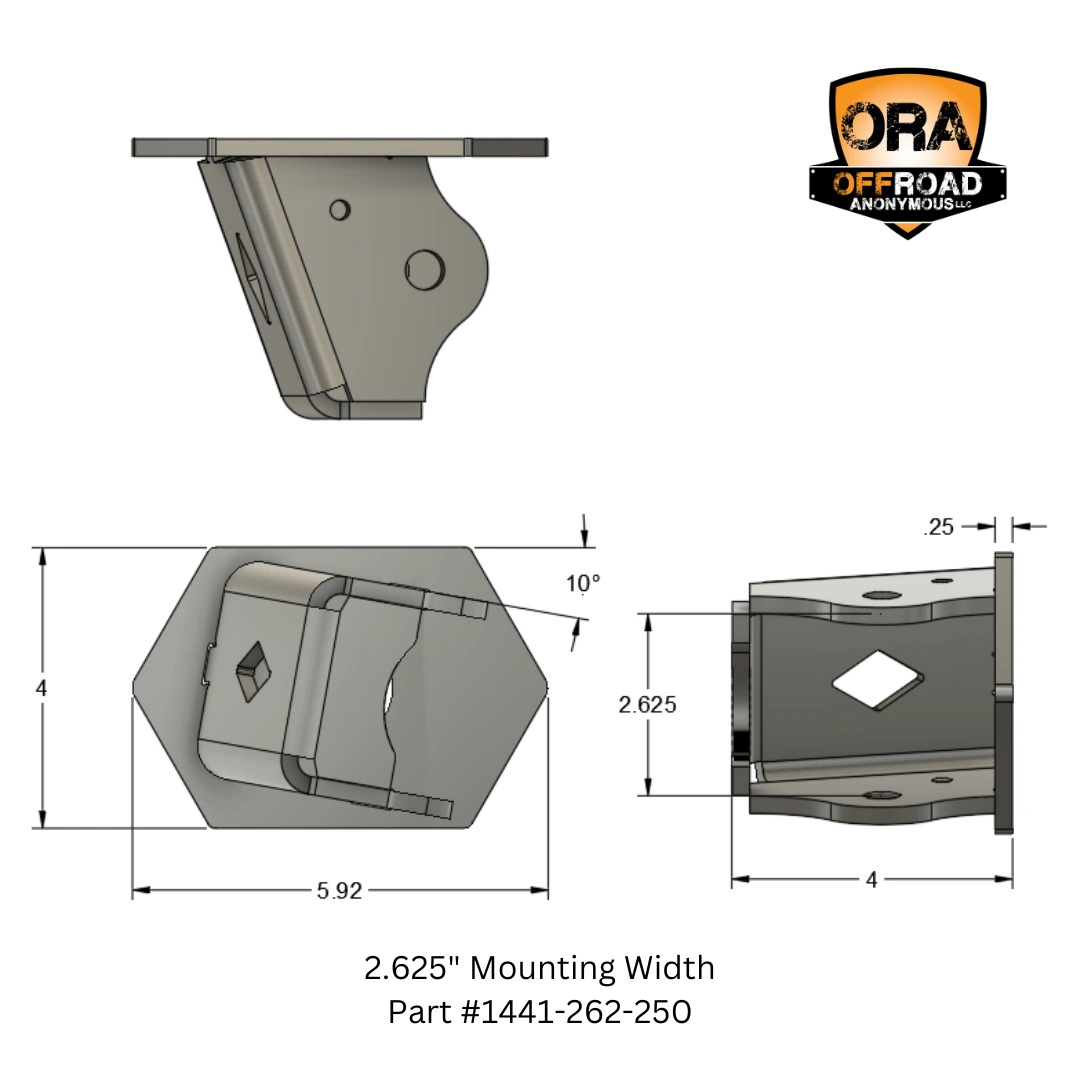

  • 2.625″ Inside Mounting Width: Accommodates larger 1.25″ rod ends

Purpose-built to handle the toughest offroad conditions, the Compact Vertical Link Bracket delivers heavy-duty strength in one expertly compact package.. Tackle your next suspension upgrade or axle swap with confidence.

Additional information

Weight N/A
Joint Mounting Width

2.00", 2.625"
