Radius Arm Tube Bracket

Build your own radius arm setup with this weld-on bracket for 2″ tube. Fits 3/4″ or 7/8″ heims and can be drilled to 3/4″. Sold individually.

$25.00

Description

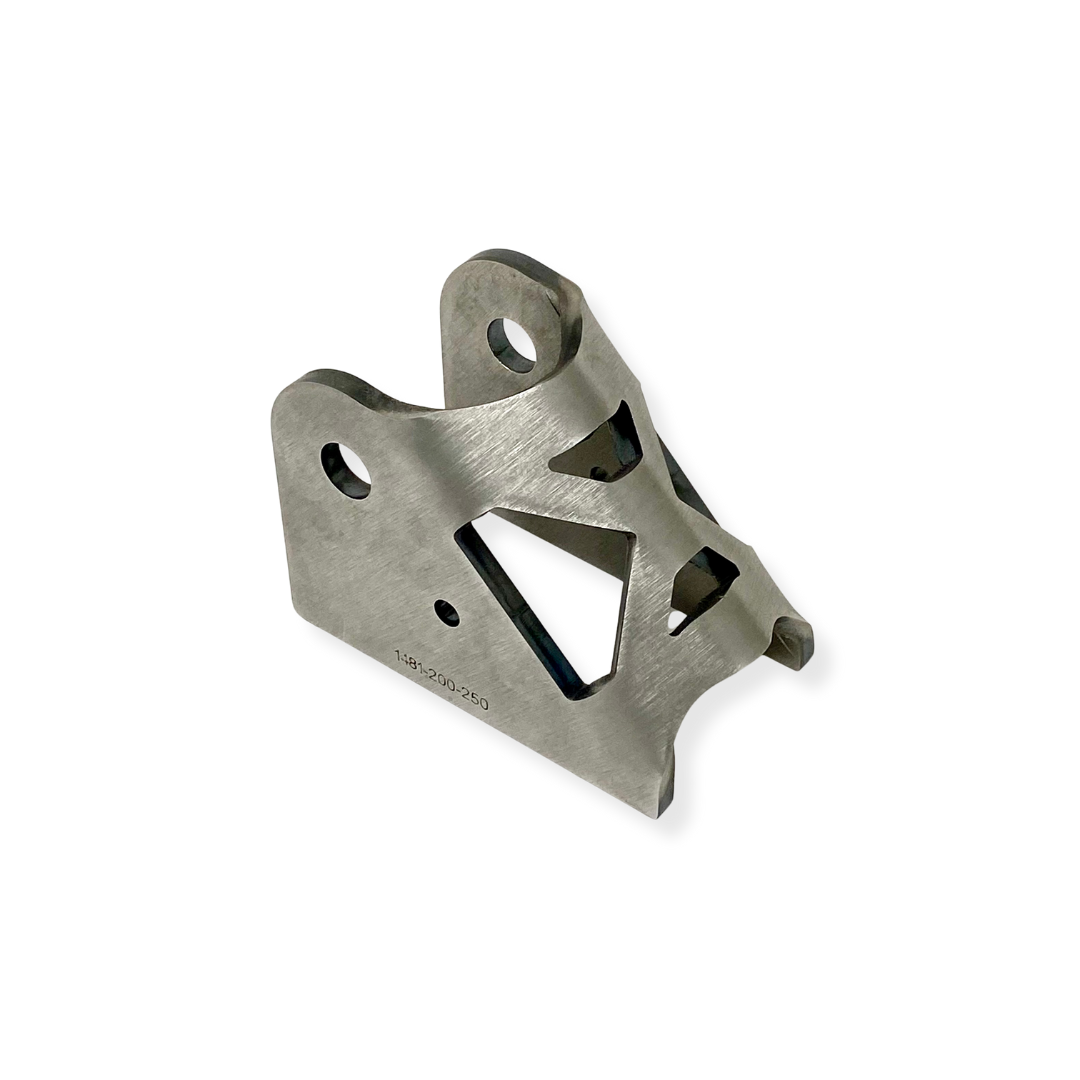

Radius Arm Tube Bracket

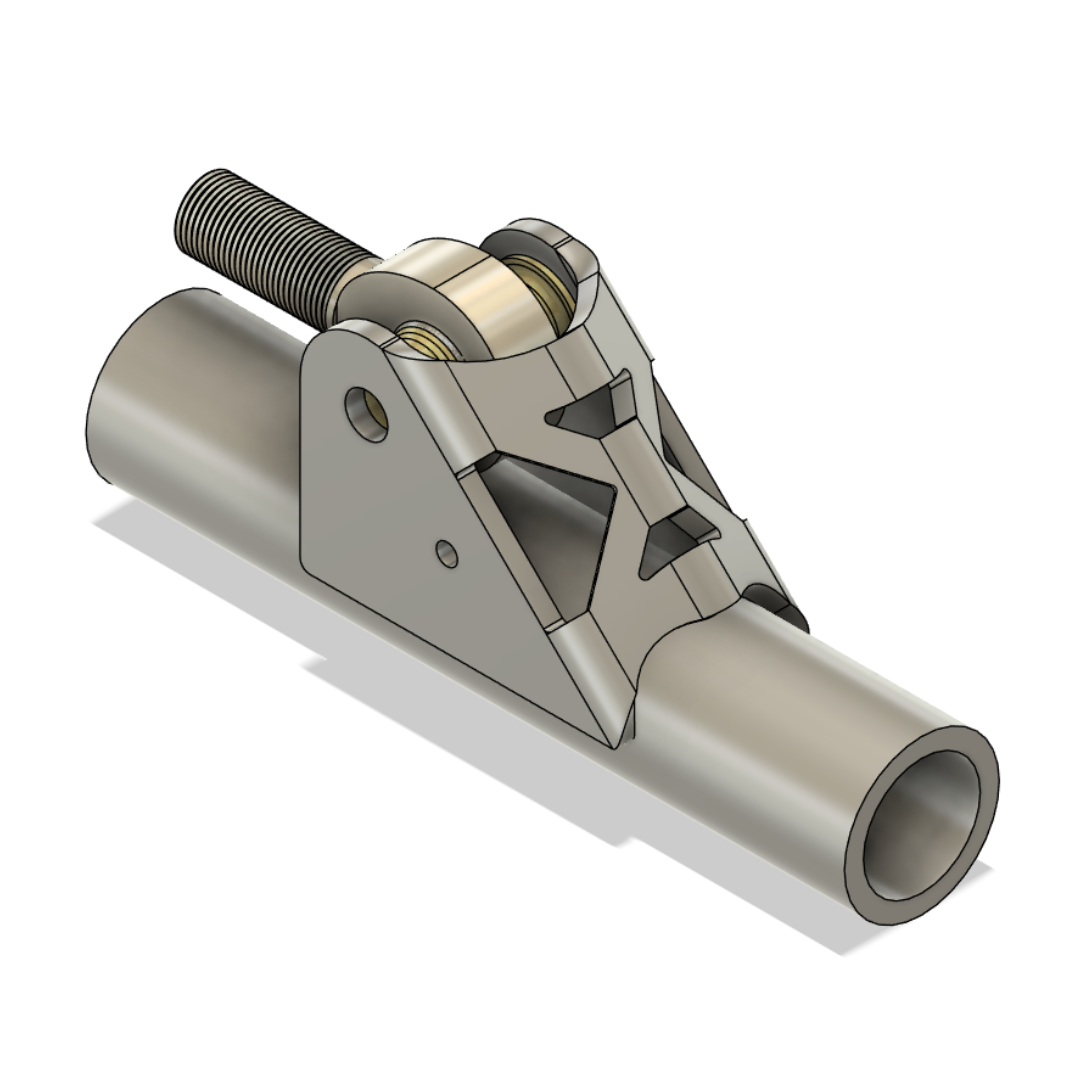

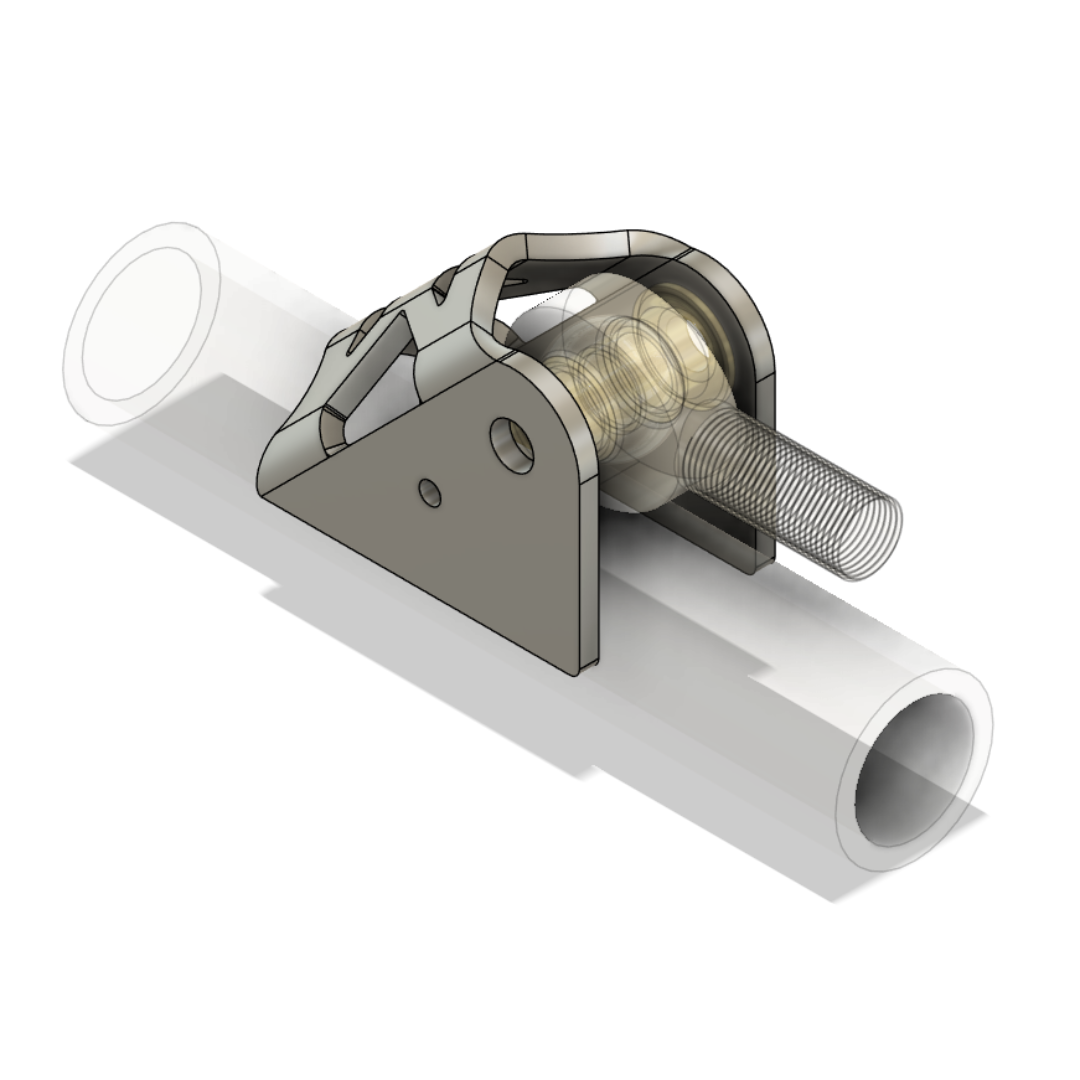

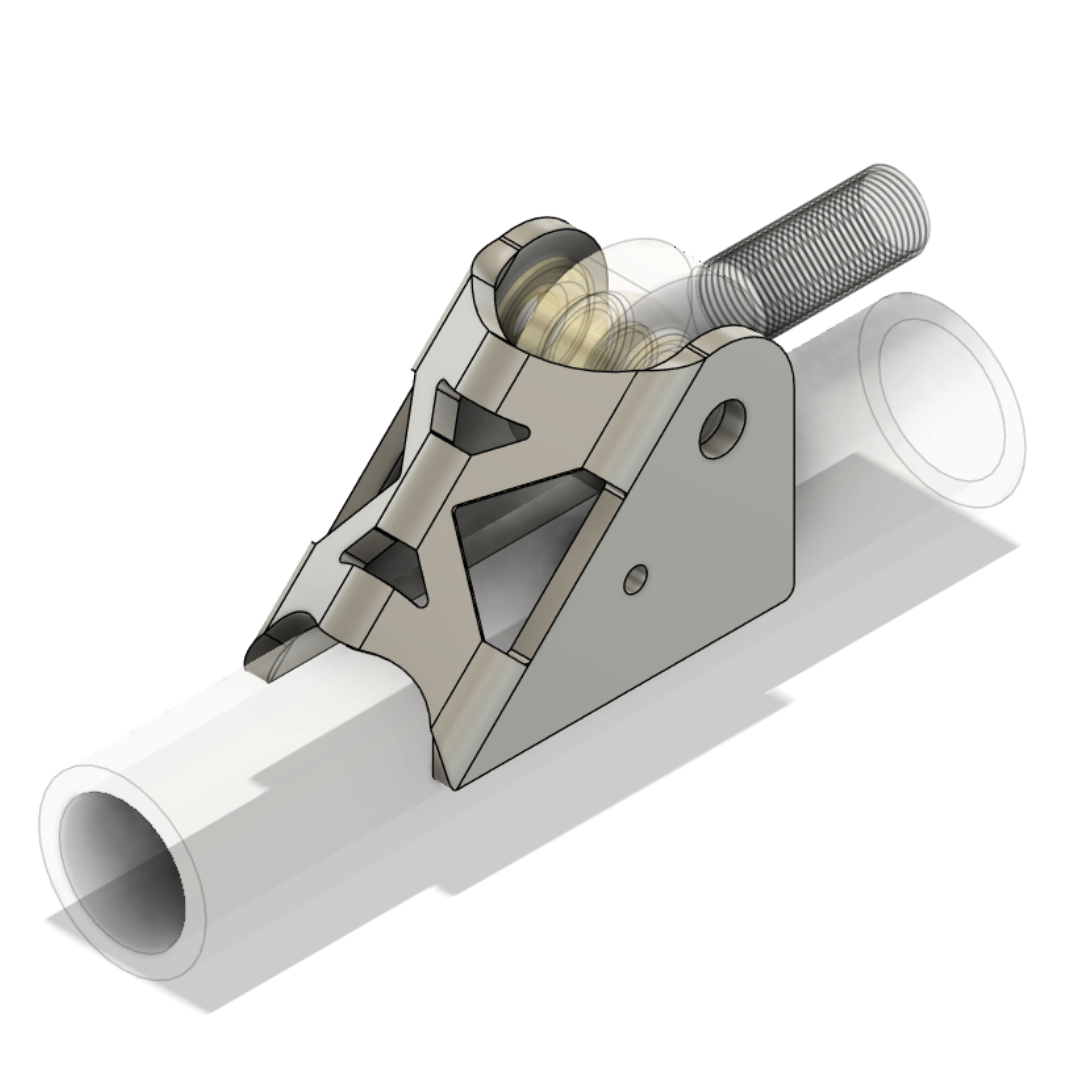

Build your own custom radius arm or long arm suspension with our Radius Arm Tube Bracket—precision designed to saddle mount directly to 2″ OD tubing. Made from heavy-duty 1/4″ thick steel, this bracket offers a strong foundation for serious offroad suspension setups.

With a 2″ inside mounting width, it’s ideal for use with 3/4″ or 7/8″ rod ends or heim joints paired with high-misalignment spacers. The bracket comes standard with a 9/16″ bolt hole. However, it can easily be drilled out to 3/4″ to suit your hardware requirements.

If you’re building a Jeep long arm suspension kit, this bracket is a go-to choice. It’s perfect for those upgrading from short arms or fabricating a custom radius arm setup. Whether you’re fabricating a one-off crawler or dialing in your trail rig, these brackets offer strength, precision, and flexibility for your build.

In addition, the laser-cut, CNC-bent tri-bend design not only adds a clean, professional look, but also increases weld surface area for enhanced durability. You can also pair it with our capture washers (sold separately); as a result, you’ll get secure bolt retention.

We sell these brackets individually. Therefore, you can order exactly what your project requires without waste.


🔩 Key Features

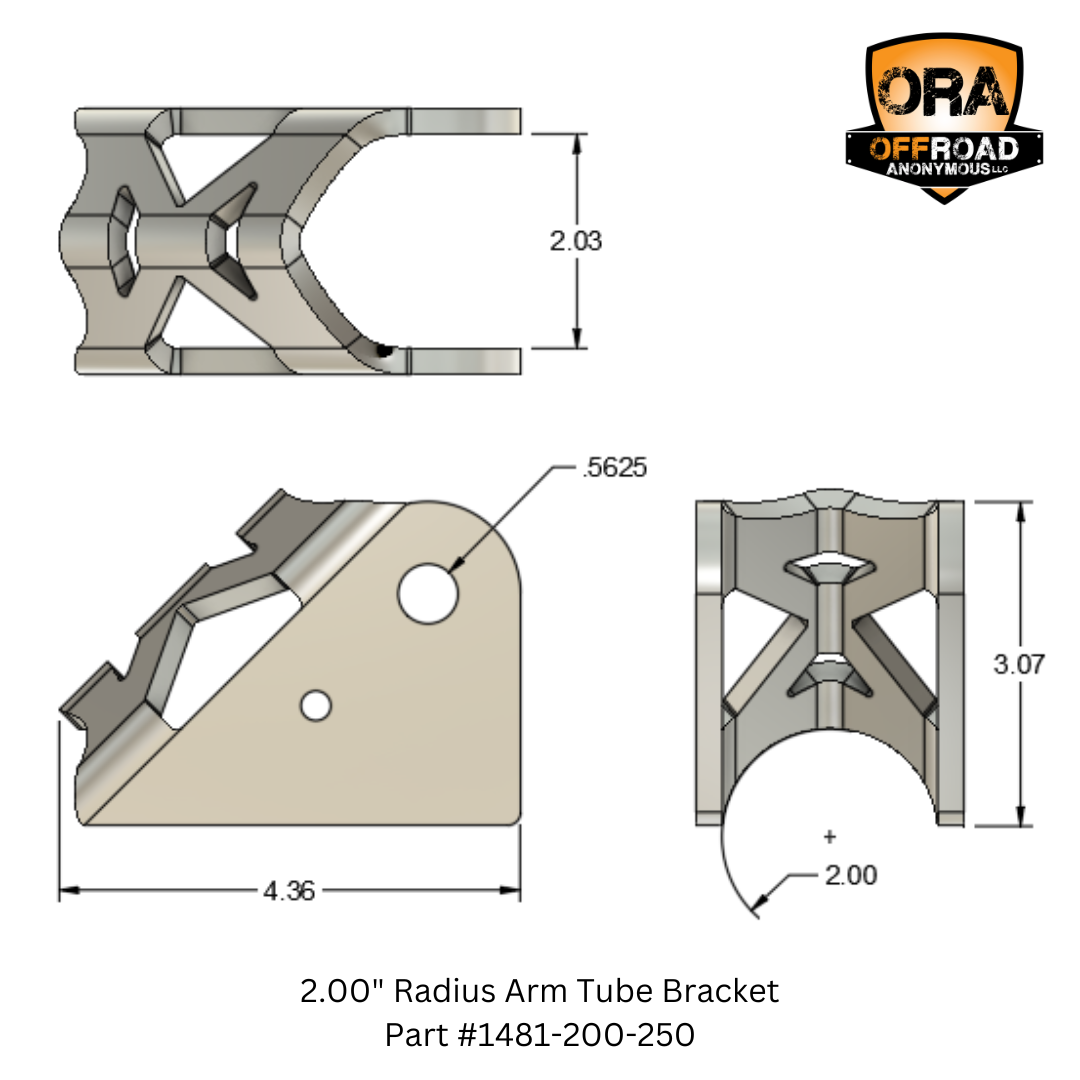

  • Fits 2″ OD tubing (saddle mount)

  • Made from 1/4″ thick steel

  • 2″ inside mounting width

  • 9/16″ bolt hole (drillable to 3/4″)

  • Works with 3/4″ or 7/8″ heims + 2″ wide misalignment spacers (Heim Not Included)

  • Laser cut, CNC bent

  • Sold individually

  • Made in the USA

🔗 Works Great With:

Additional information

Weight 1.5 lbs
