Heavy-duty angled link bracket for custom 3-link, 4-link, or radius arm builds. 1/4″ steel. 2.0″ or 2.625″ widths. Weld-on design. Sold individually.
$25.00 – $27.50

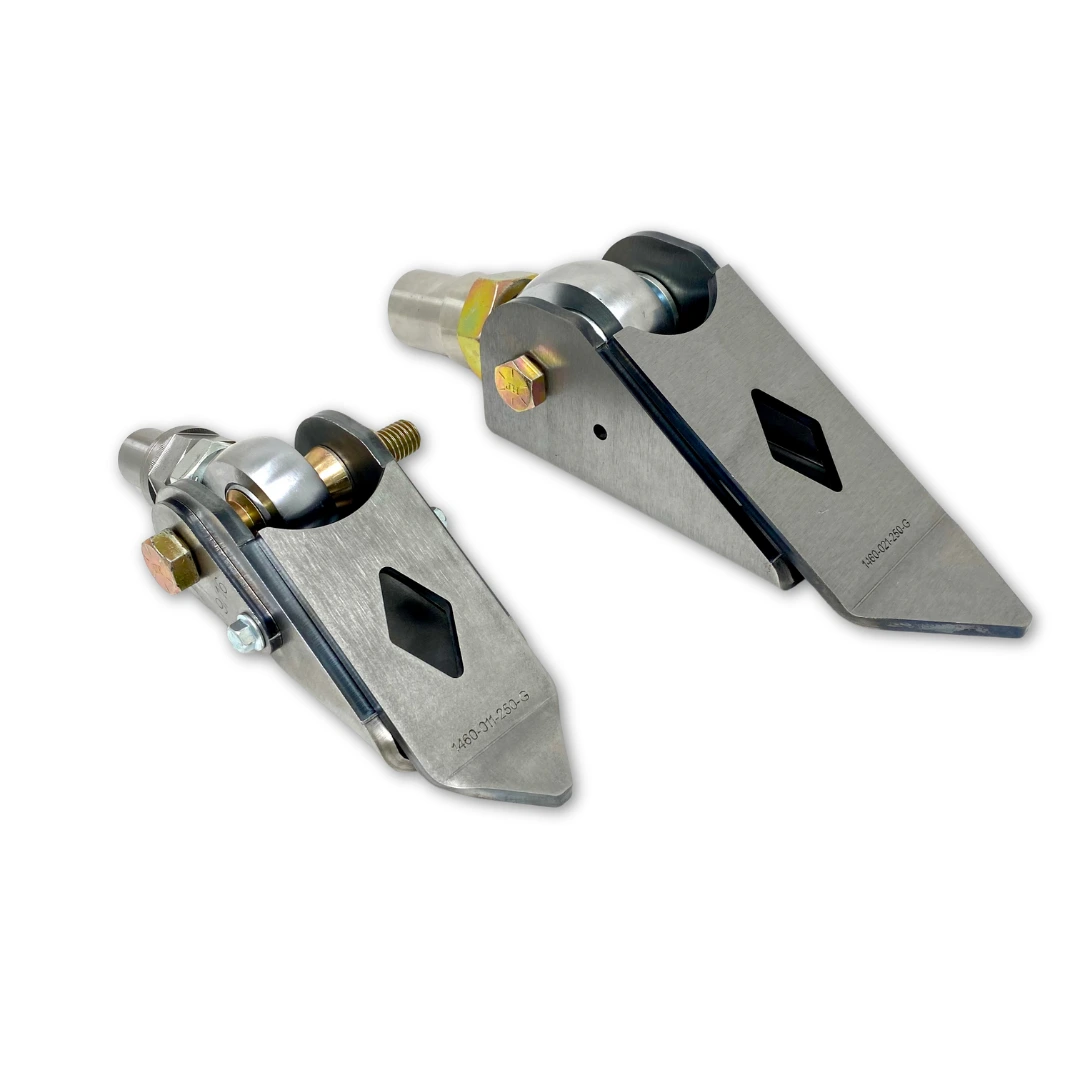

Linked suspension can be tricky to set up, but with our Angled Link Bracket, it’s easier to dial in your suspension geometry for proper link alignment and strength. These heavy-duty weld-on brackets are ideal for mounting lower links on custom 3-link, 4-link, or radius arm suspension systems.

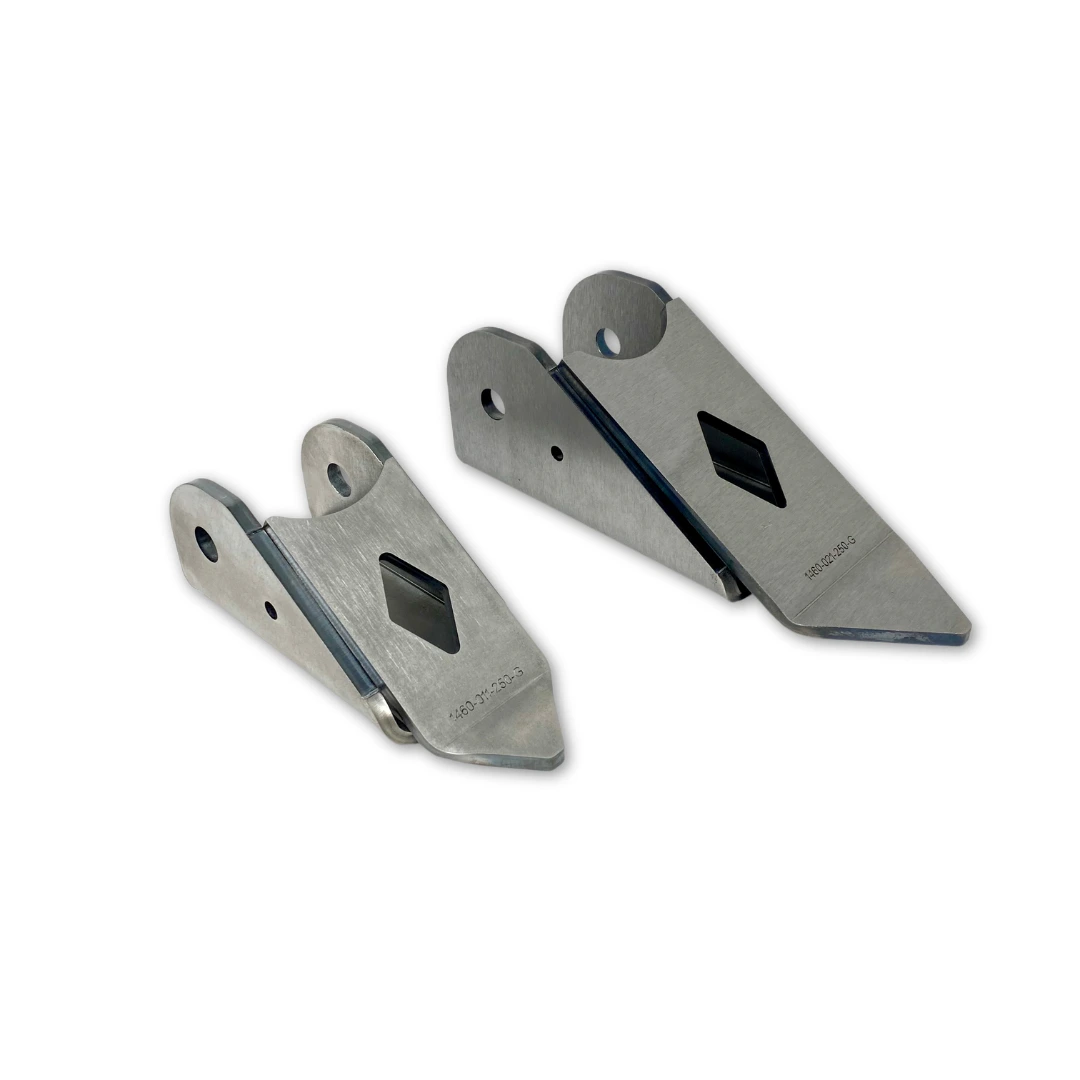

Each bracket is laser cut from 1/4″ HRPO steel and bent on a CNC brake for precision fit and added strength. The compact, angled design helps protect your rod end while providing a clean mount to flat frame surfaces. We’ve also integrated a gusset to increase strength and provide extra weld surface area for maximum security on the frame.
Available Mounting Widths:

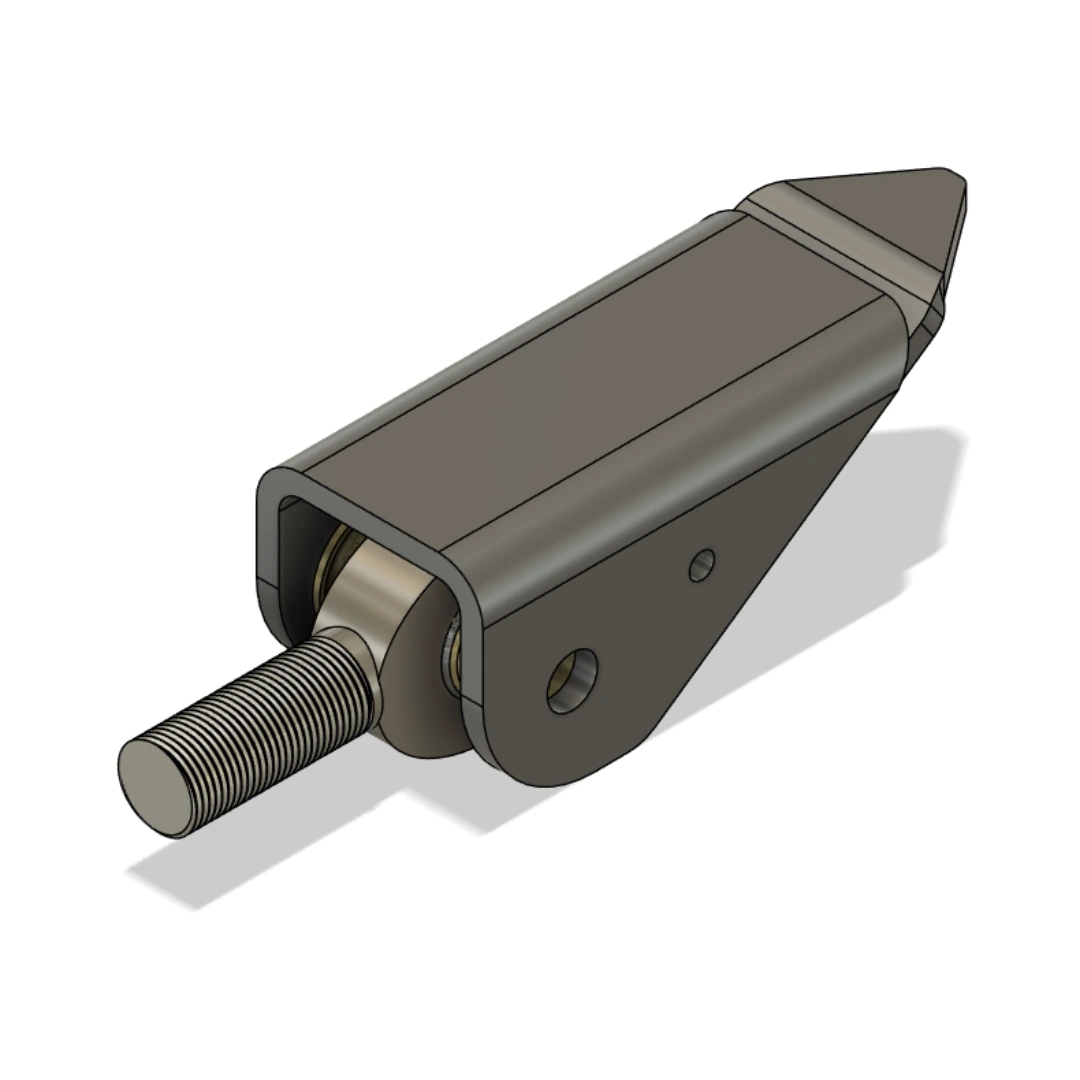

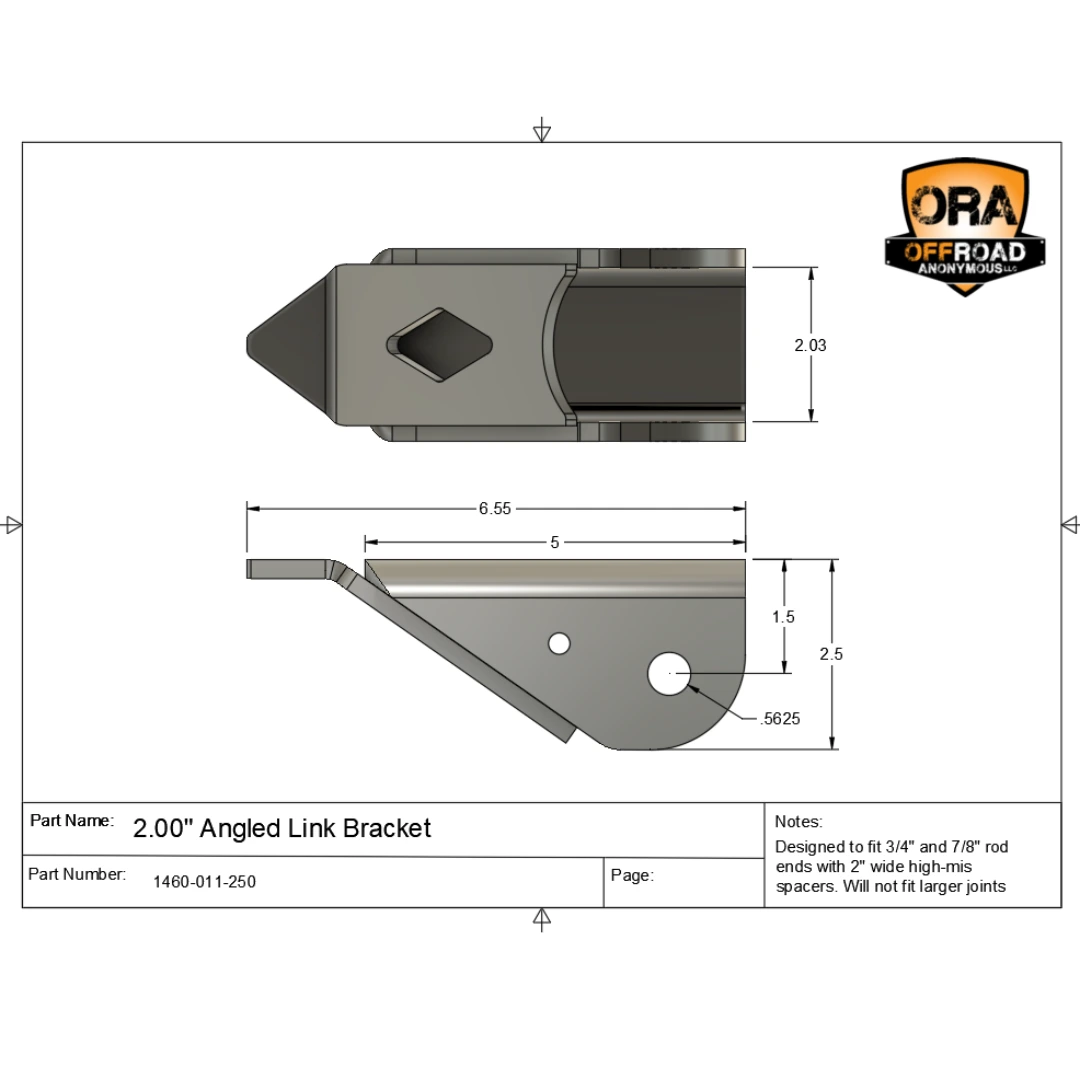

2.00″ – Designed for standard 3/4″ & 7/8″ rod ends with 2″ wide misalignment spacers.

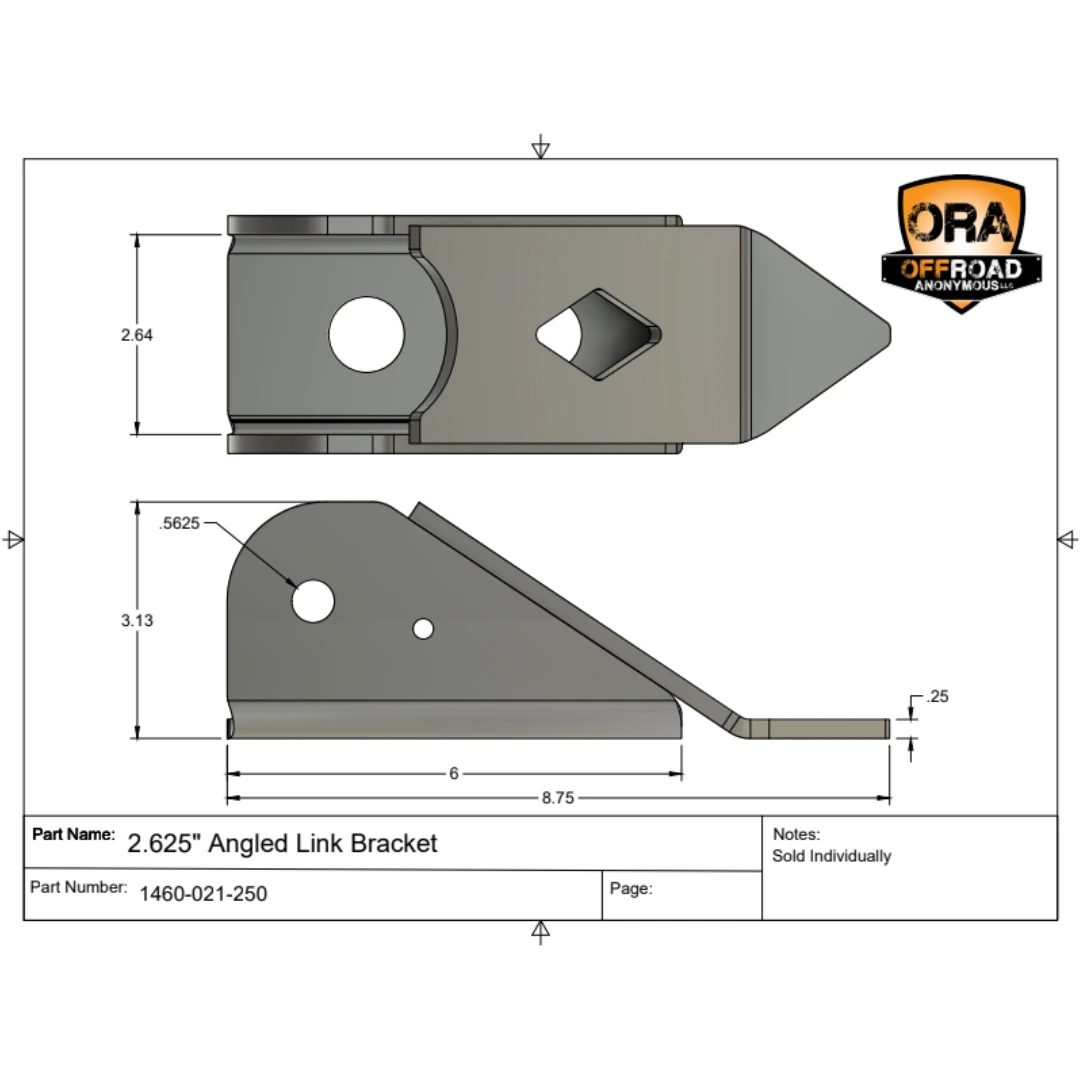

2.625″ – Designed for the large 1.25″ rod ends with 2.625″ wide misalignment spacers.
Both versions include a 9/16″ bolt hole that can be easily drilled to fit larger hardware if needed. Each bracket also features 1/4″ holes compatible with our capture washers for added security.
If you need a wider 3″ option, check out our Leaf Spring Hanger. And don’t forget to pair these brackets with our Lower Link Bracket with Shock Mount and fabrication link tabs to complete your suspension setup.
Note: Brackets ship unwelded; welding required. Rod end kit not included. Sold individually
| Weight | N/A |
|---|---|
| Mounting Width | 2" width – Individual, 2.625" width – Individual |
